Application
Compatible for HONDA ACCORD CR2/CR3 2013-2017
Compatible for HONDA ACCORD COUPE CT1/CT2 2013-2017
Compatible for ACURA TLX UB1 2015-2018
Specification
Top mounts Front pillow ball top mount
Adjustable camber plate Front only
Damping 24 levels rebound damping adjustable
Spring rate Front 10 kg/mm (558 lbs/in)
Spring rate Rear 7 kg/mm (392 lbs/in)
Spring length Front 180mm
Spring length Rear 200mm
Adjustable height lowering 1-3 inch
Coilover overall length Front 420mm-520mm
Coilover overall length Rear 530mm-615mm
Shock type Twin tube
Spring preload 7-10 mm
Color black body with blue spring
Package Size 71*51*21 cm
Package Weight 25840 g
Feature
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Pillow ball top mounts improve the steering feel and response.
4. Full length dust boot keeps shaft and oil seal from damage.
5. Upgraded damper adjust knob makes damping setting easier.
6. Upgraded valving for more smooth ride.
7. Twin-Tube structure allows sufficient stroke within the shock absorber.
8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.
10. Decent appearance benefits from CNC machined parts and special surface treatment.
11. Most pieces in our coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable and rust resistant components.
12. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
13. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
14. All coilovers were produced and assembled at dust-free factory which guaranteed the highest quality.
15. Camber plate top mounts help to eliminate the need for a separate camber kit.

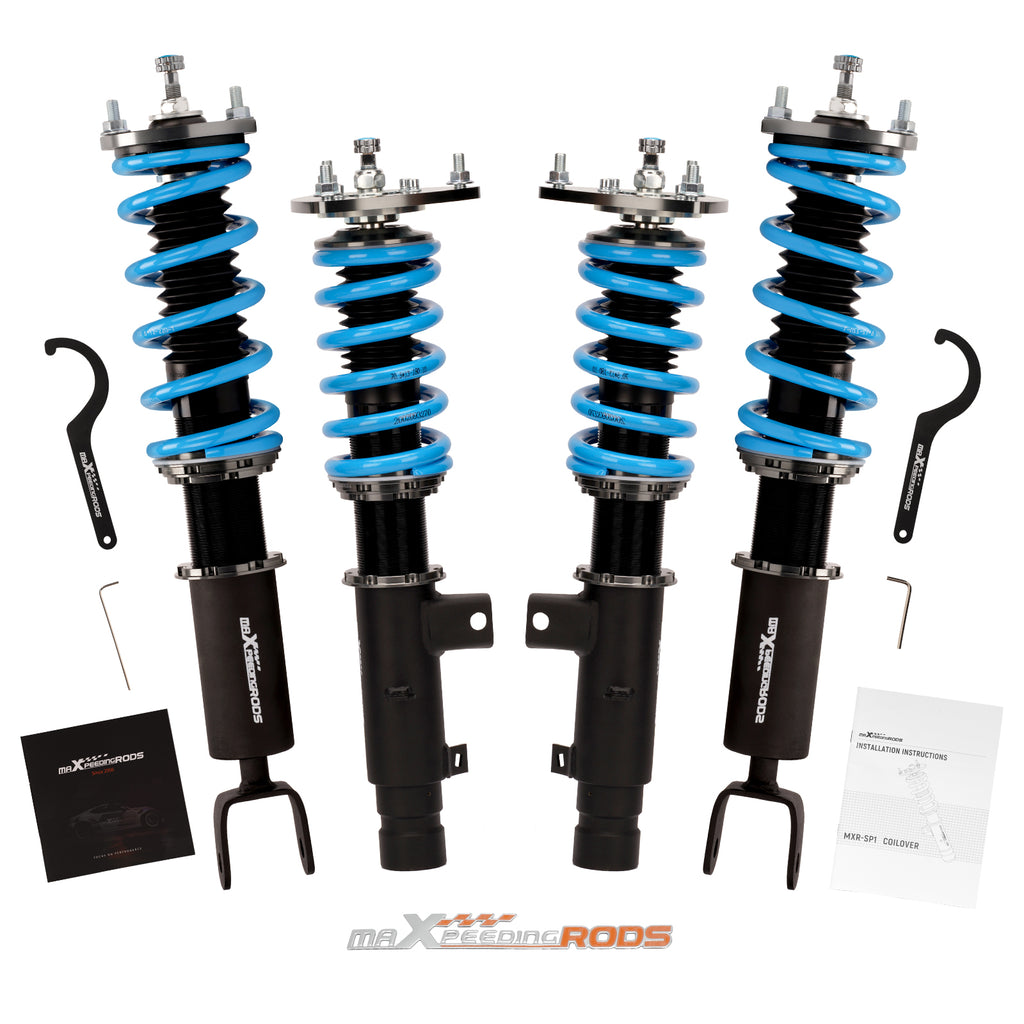

Package included
- 2 Front + 2 Rear Full coilovers
- A pair of wrenches for height adjustment
- User Instructions
Warranty: one year warranty for any manufacturing defect
