Application
Compatible for Mazda6 2003-2006 GG 4-door sedan
Compatible for Mazda6 2003-2006 GG 5-door liftback
Compatible for Mazda6 2003-2006 GG 5-door wagon
Compatible for Mazdaspeed6/ Compatible for Mazda 6 MPS 2005-2007 4-door sedan
Specifications
- Brand: MaXpeedingrods
- Condition: 100% Brand New
- Warranty: 1 Year
- Top mount: Front pillow ball
- Damping: 24 ways rebound damping
- Spring rate Front: 9 kg/mm (504 in/lbs)
- Spring rate Rear: 9 kg/mm (504 in/lbs)
- Adjustable height: lowering 1-3 inch
- Shock type: Twin tube
- Spring Preload: 7-10 mm
- Color: black body with blue spring

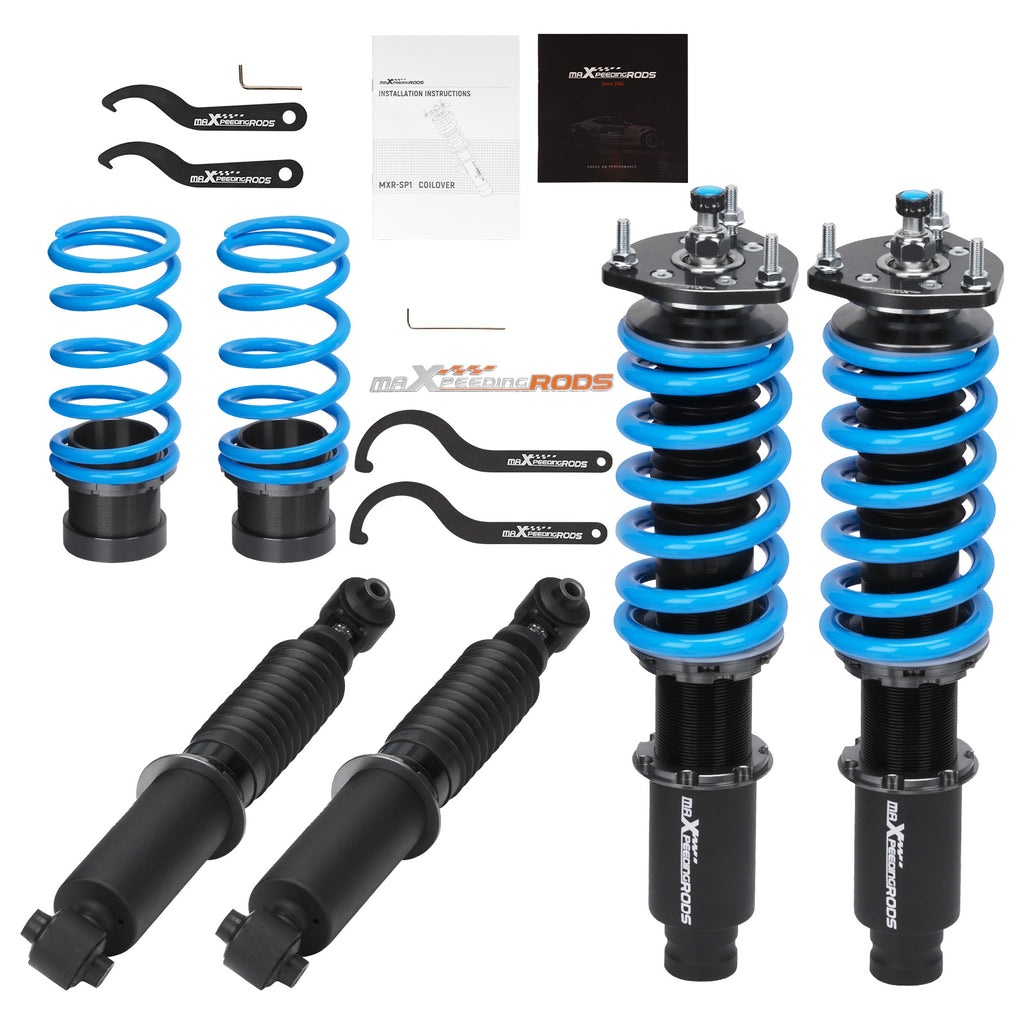

Package included
- Complete coilovers for 2 front and 2 rear
- A pair of wrenches for height adjustment
- Installation Instructions
Key Features
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Pillow ball top mounts improve the steering feel and response.
4. Full length dust boot keeps shaft and oil seal from damage.
5. Upgraded damper adjust knob makes damping setting easier.
6. Upgraded valving for more smooth ride.
7. Twin-Tube structure allows sufficient stroke within the shock absorber.
8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.
10. Decent appearance benefits from CNC machined parts and special surface treatment.
11. Most pieces in our coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable and rust resistant components.
12. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
13. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
14. All coilovers were produced and assembled at dust-free factory which guaranteed the highest quality.
