Application
Compatible For Lexus IS250/IS350 (GSE20/21) RWD 2006-2013
Compatible For Lexus IS F RWD 2008-2014
Compatible For Lexus GS300/GS350 RWD 2007-2011
RWD Only, not fit for AWD
Specification
Top mounts: standard rubber top mount front and rear.
Damping: 24 levels rebound damping adjustable
Front Spring Rate: 12 kg/mm (672 in/lbs).
Rear Spring Rate: 9 kg/mm (504 in/lbs).
Adjustable Height: Yes lowering 1" to 3"
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Black body with blue spring
Warranty: one year warranty for any manufacturing defect
Package included

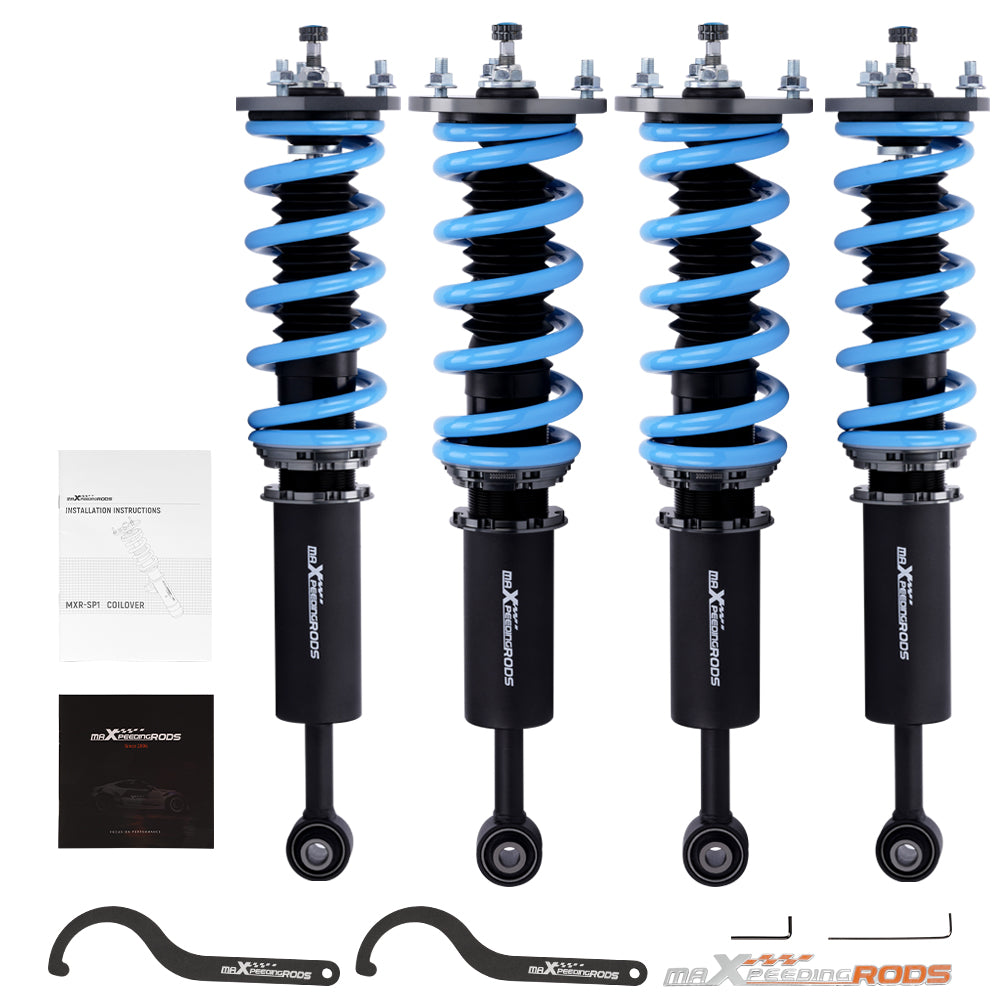

complete coilovers 2 front and 2 rear,a pair wrench for height adjustment
Dimension
Gross weight: 26.28kg
Package size: 71*51*21cm
Feature
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2.Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
3.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
4. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions.
5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6. Separate height adjustment does not affect damper stroke,Height can be adjusted with coilovers installed on the vehicle.
7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
8. Height Adjustment tools included.
9. Full rebuildable.
10.Upgraded damper oil---make damping more stable and smooth in wide temperature range.
11.Clean room assembled---maintain higher level of accuracy and reliability.
12.All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
