Instruction
maXpeedingrods T6 lowering coil-over, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, and decent outlook, offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coil-overs are assembled in a dust-free factory, which turns out good quality and long life.
Application
Compatible for LEXUS ES350 2007 - 2009 All Models
Compatible for TOYOTA AVALON 2006 Built After 12/05 Production Date
Compatible for TOYOTA AVALON 2007 - 2011 All Models
Compatible for TOYOTA CAMRY 2007 - 2011 All Models
(Notice: WILL NOT FIT HYBRID MODELS)
Specification
Top mount: Front camber plate；rear pillow ball
Damping: 24 levels rebound damping adjustable
Spring rate Front: 12 kg/mm (672 lbs/in)
Spring rate Rear: 9 kg/mm (504 lbs/in)
Adjustable height: lowering 1-3 inch
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: black body with blue spring
Warranty: one year warranty for any manufacturing defect

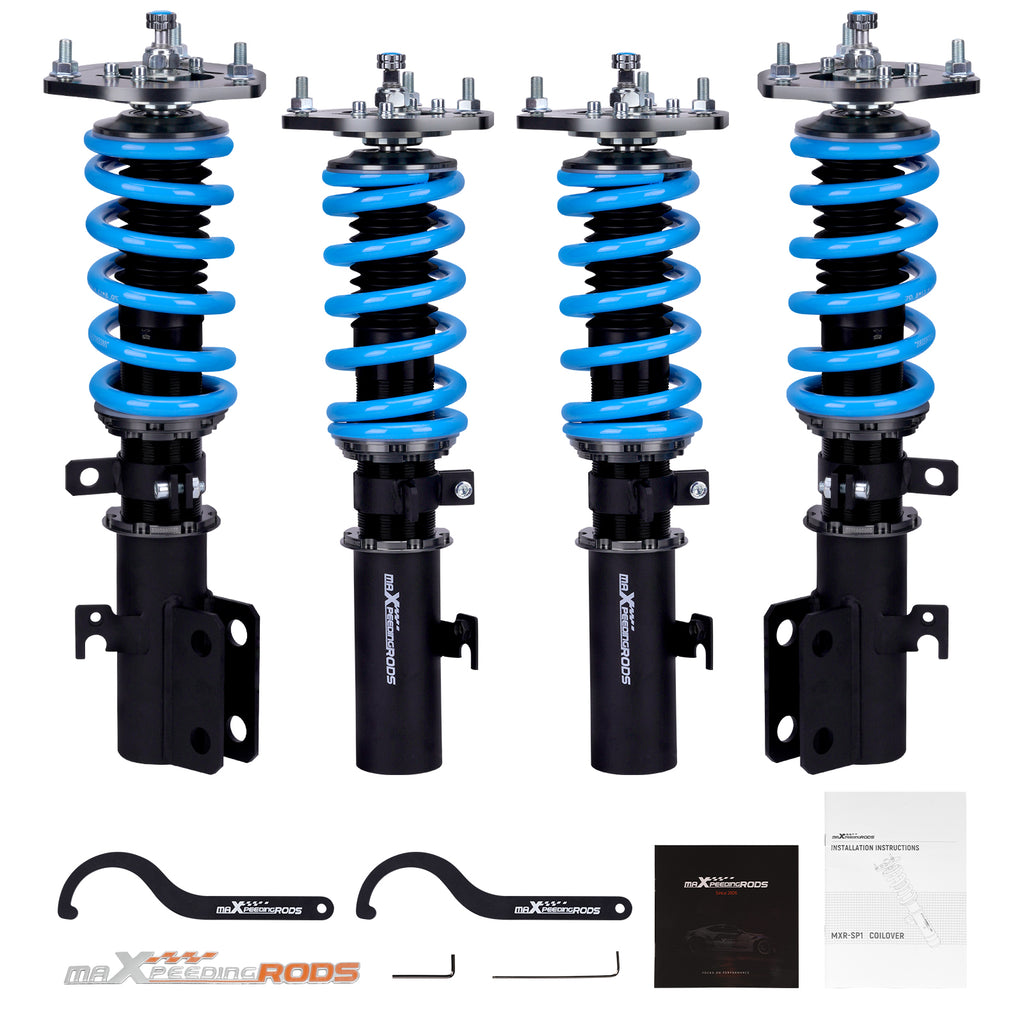

Package included
Complete coilover assembly kit for front and rear
A pair wrench for height adjustment
Dimension
Package dimension : 62*50*19
Weight: 28960g
Feature
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Pillow ball top mounts improve the steering feel and response.
4. Full length dust boot keeps shaft and oil seal from damage.
5. Upgraded damper adjust knob makes damping setting easier.
6. Upgraded valving for more smooth ride.
7. Twin-Tube structure allows sufficient stroke within the shock absorber.
8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.
10. Decent appearance benefits from CNC machined parts and special surface treatment.
11. Most pieces in our coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable and rust resistant components.
12，Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
13. All coilovers were produced and assembled at dust-free factory which guaranteed the highest quality.
