Introduction

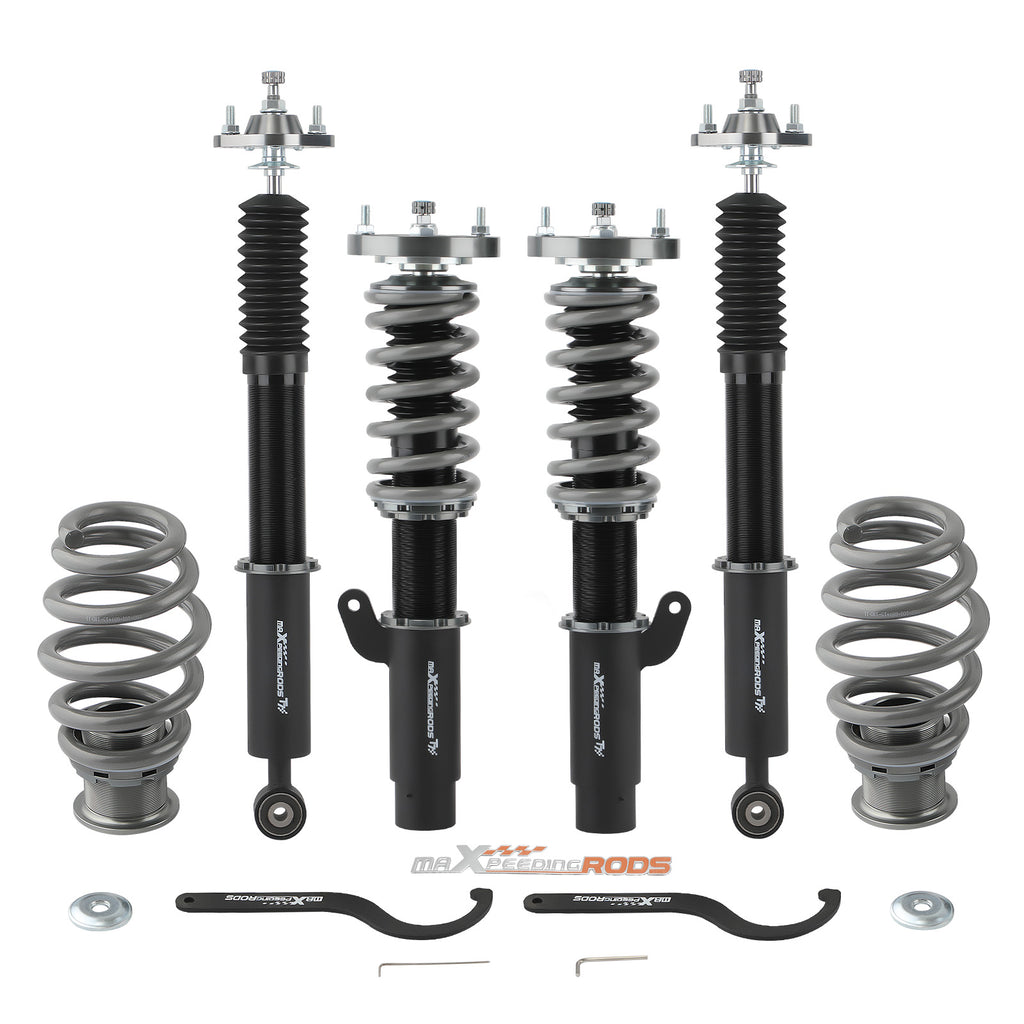

MaXpeedingRods T7 series (also known as SP2) lowering coilover, are designed for daily street use and occassional track use. It features with racing damping oil, upgraded racing spring, full length height adjustable and adjustable camber plate( applicable for some vehicles), which offers you a lowered stance and enhanced handling.
Application
Compatible For BMW 3 (E46) 4-door sedan 318i; 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)
Compatible For BMW 3 2-door Convertible (E46) 318i; 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)
Compatible For BMW 3 2-door Coupe (E46) 318i; 320ci; 325ci; 330ci;320cd; 330cd; (02/1999-12/2006)
Compatible For BMW 3 Touring 5-door wagon/estate (E46) 316i; 318i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)
Note: not for Xi/xd 4 wheel drive, not for M3 model either
Specification
Front top mounts: pillow ball top mount with camber plate
Rear top mounts: pillow ball top mounts
Damping: 24 levels rebound damping adjustable
Spring rate Front: 9 kg/mm (504 lbs/in)
Spring rate Rear: 11 kg/mm (616 lbs/in)
Spring length Front: 180mm
Spring length Rear: 183mm
Spring inner diameter Front: 70.5mm
Spring inner diameter Rear: 63mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: black body with grey spring
Warranty: one year warranty for any manufacturing defect
Package included
complete coilover kit
2 front and 2 rear
a pair wrench
Dimension
weight：27500g
size：70*50*19cm
Feature
1)Racing damping oil and spring rates set for occassinal track use and daily street use;
2)With better damping setting,you will get better performance and enhanced handling;
3) Lowered height adjustment from 1" - 3" (depends on vehicle models)which allow lower center of gravity and also add a more aggressive stance;
4) Adjustable pre-load spring tension to reduce the shaking motion to a certain extent;
5) 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system.;
6) CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight;
7) Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable;
8) All inserts come with fitted long rubber boots--- To protect the damper more well and be durable;
9)Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
10) Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts, matt finished surface
11) Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
12) Clean room assembled---maintain higher level of accuracy and reliability.
Note
Caution: OE shims need to be installed on the rear eye bolt bushings.
