Application
Perfect for all 3.0L-6.0L engine
Specification
Exhaust (Turbo Manifold) Flange: T4 4 Bolt Flange
Exhaust (Downpipe) Flange: V-Band Flange
Wastegate: External Wastegate
Horse Power: Boost Horse Power up to 600+ BHP
Turbo Height: 243cm
Turbo Width: 273cm
Compressor:
Trim: 50
Inducer Diamter: 69mm
Exducer Diamter: 98 mm
A/R:0.66
Turbine
Trim:78
Inducer Diamter: 88mm
Exducer Diamter: 77.5 mm
A/R:1.05
Oil Inlet: M9 & 2M81.25
Oil Outlet: M19 & 2M81.25
Blow Off Valve:
Billet Aluminum Body
8 Discharge Ports That Draw In Surrounding Air and Release a Unique Discharge
Sound
40mm, Hard-Anodized Valve for Increased Airflow
Dual Spring System Promoted Response and Allows for High Boost Pressures
Holds Up to 30 PSI Boost Pressure
Aggressive for JDM Racing Discharge Sound
2 Bolt Mounting Design
Flange Pipe:
Fits TYPE-S or TYPE-RS Dump Pipe Flange
Construction Prevents Warping Due to High Heat
Made of High Quality T-6061 Aluminum, Lightweight Design
2.50" Pipe Size
Universal T3/T4 T04E Oil Feed+Return Drain Line:
Oil Return Line: Length: 550mm || Inner Diameter: 21mm
Oil Feed Line: Length: 1000mm || Inner Diameter: 14mm
Quantity:

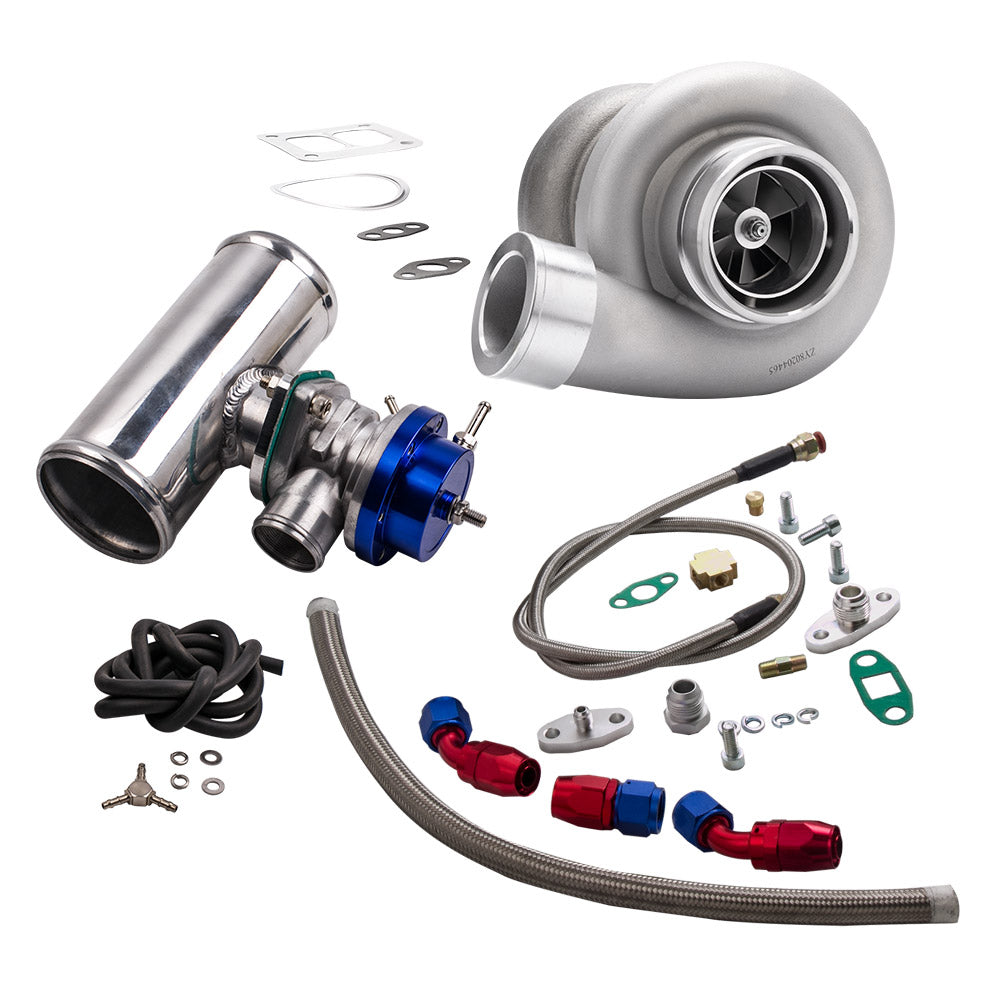

You will receive as shown in the picture
Notice
\- Please double confirm before ordering.
\- No instruction included; Professional installation and alignment suggested.
\- Please check our store for other auto parts you may be interested in.
\- For any needs please contact us.
\- Replace, repair or reconnect air cleaner element per manufacturer's manual
to avoid compressor wheel damage.
\- Make sure the oil drain line is lower than the turbo itself.
\- Gasoline car must install a water cooling device to avoid overheating.
\- Ensure exhaust outlet are well sealed by welding.
