Application
Suitable for daily street use and junior track use.
Compatible for Audi A3 upgraded Engine FT190 4EB/4EA/4EC 1996-2009
Compatible for Audi TT upgraded Engine FT190 4EB/4EA/4EC 1996-2009
Compatible for Compatible compatible for ford Transit IV2.5 TD Engine FT 190
4EB/4EA/4EC 1991-
Compatible for Volkswagen BEETLE, compatible for SeatIBIZA upgraded Engine FT
190 4EB/4EA/4EC 1996-2009
Compatible for Audi A3 UPGRADED 1.8L PAUM 96 -
Compatible for Audi A3 1.8L P 96 - 99
Compatible for Audi A3 1.8T 1.8L PARZ/APP/AUQ 00 -
Compatible for Audi TT 1.8T 1.8L PAPP/AUM/AUQ/ARY 99 -
Compatible for Audi A4 1.8T 1.8L PAVJ 01 -（not compatible for Audi A4 Quattro）
Compatible for VW BEETLE 1.8T 1.8L PAUM/AWU/AWV/BKF/BNU 00 -
Compatible for VW BORA SPORT 1.8T 1.8L PAUM /AWU/AUQ 02 -
Compatible for VW GOLF GTI 1.8L P AUM/AWU/AUQ 00 -
Compatible for Seat LEON 1.8T 1.8L P AJQ00 -
Compatible for Seat LEON compatible for CUPRA 1.8L P ARY02 -
Compatible for Skoda OCTAVIA 1.8T 1.8L PAUQ 02 -
Compatible for Skoda SUPERB 1.8T 1.8L PAUQ 02 -
IMPORTANT NOTICE:
1\. This is an upgraded K04 turbo forK03-053 & K03 -052. Do not for K04-022.
2.K04 -001 turbo is different from K03-052＆ K03-053
（1）some modifications are needed,compressor intake size is bigger thanK03-052
or K03-053
K03-052 ＆K03-053 compressor intake size is 45mm
K04-001 compressor intake size is 48.7mm
（2）Silicone hose may need for K04-001compressor intake connection.
3\. Make sure your OE number is correct forK04-001, K03-052 and K03-053
OE/Part number
K04-001 part number/OE number:
53049500001,5304-950-0001, 5304 950 0001,
53049887501,5304-988-7501, 5304 988 7501,
06A-145-705HP, 06A145705HP,
IMPORTANT NOTICE:
This is an upgraded K04 turbo for K03-053 & K03 -052 (few modification may
need for K03-052)
K03-052 Part/OE number:
53039700052,5303 970 0052,5303-970-0052,
53039880052,5303 988 0052,5303-988-0052,
53039880094,5303 988 0094,5303-988-0094,
06A145704T, 06A145713D, 06A145713DX, 06A145713DV, 06A145713F,
06A145713FX,8299299564, 8299299564,
K03-053 Part/OE number:
53039880053,5303 970 0053,5303-970-0053,
53039880058,5303 988 0058,5303-988-0058,
06A145681H,06A145702P,06A145704S,
06A145713B,06A145713L,06A145713M,
Specification
Turbo Model: K04-001
Engine Model: 1.8L-5V
Engine Code: AJQ, APP, AUM, AUQ, ARY
Cooling Type: Water & Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Horsepower: 400HP
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Condition: New

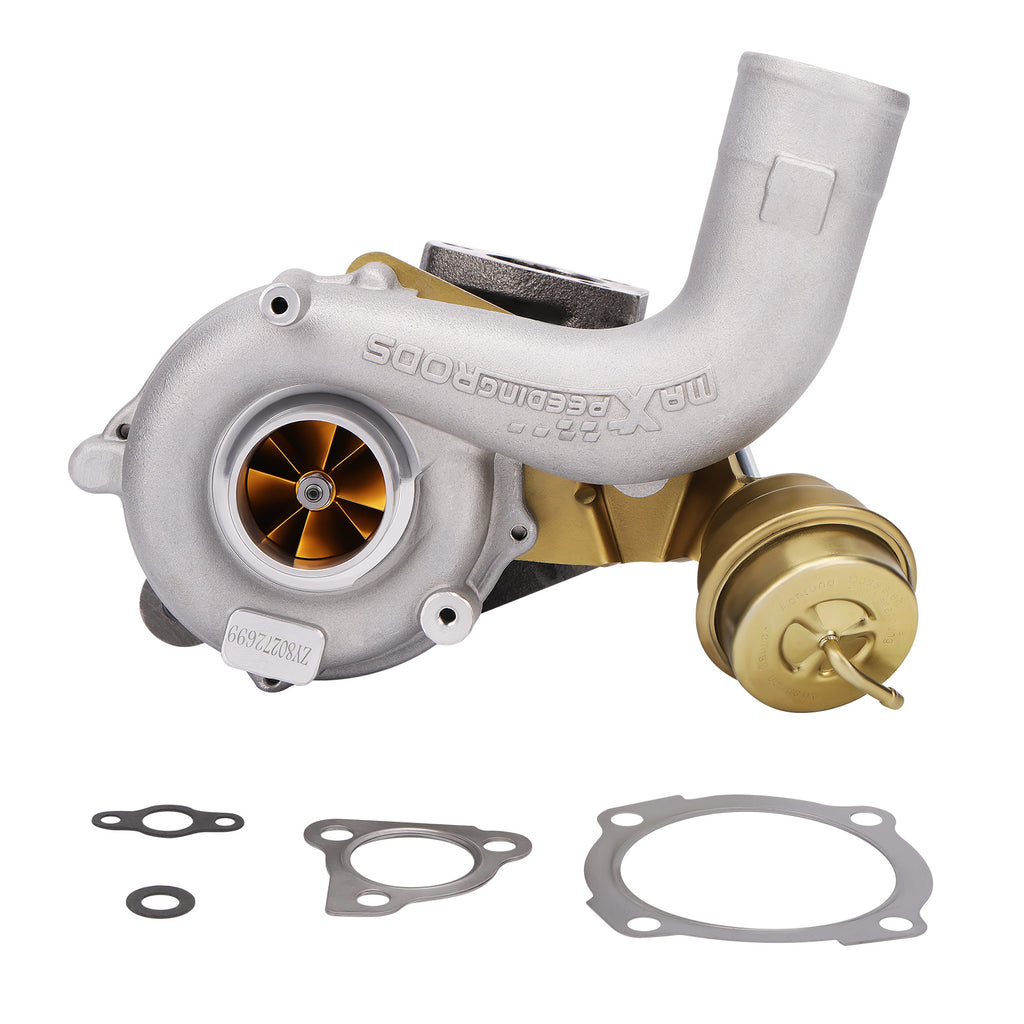

Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:30 x 27 x 24cm
Package Weight: 6900g
Package included
1xTurbocharger
2xFlange gasket
2xOil port gaskets
1xManual
1xBrochure
1xSticker
Feature
Product Material
1\. Turbine housing: Silicon-Molybdenum - temperature resistant up to 850℃
2\. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance
up to 1000℃
3\. Compressor housing: ZL104 aluminium with lightweight
4\. Billet compressor wheel: forged full-machined billet aluminium compressor
wheels with a larger horsepower range and better boost response
Product Performance
1\. OEM fitment turbo with upgraded material and performance
2\. Excellent high-temperature resistance, high efficiency and durability
3\. Rich experience in turbo production and own factory
4\. High-Speed oil seal ring and Precision clearance
5\. Forged precision-machined billet aluminium compressor wheels with better
boost response
Technology Advantage:
1\. 100% balancing Test by TURBO TECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Note
Please confirm your original turbo PART NUMBER before Purchasing
Professional installation is highly recommended
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
