Application
Compatible for Ford Excursion 7.3L Powerstroke Diesel Engine 2000-2003
Compatible for Ford F Series Trucks 7.3L Powerstroke Diesel Engine - Produced after 12/98 - Powerstroke Badges on Doors 1999
Compatible for Ford F Series Trucks 7.3L Powerstroke Diesel Engine 2000-2003
Compatible for Ford Pick-up Truck 7.3L Powerstroke Diesel Engine 2000-2003
Compatible for Ford Pick-up Truck 7.3L Powerstroke Diesel Engine - Produced after 12/98 - Powerstroke Badges on Doors 1999
Note:
*Turbo Does Not Fit early 1999 7.3L Engines,
*1999 Model Identification
Early 1999 Models: V8 Powerstroke Fender Badge and 4 Bolts Securing the Compressor Housing.
Late 1999 Models: Powerstroke Badges on Doors and 5 Bolts Securing the Compressor Housing.
Our turbo only fits for Late models.
OE/Part number
F81Z6K682CARM ,
1831383C92, 1831383C93,1831383C94,
1831450C91, 1831450C94, 1831452C91, 1831660C92
7020120005,702012-0005,7020120006,702012-0006,
7020129006,702012-9006,7020120010,702012-0010,
7020120012,702012-0012,7020125012S,702012-5012S,
7064475003,706447-5003,7064479003,706447-9003,
(Not fit for 1825878C91，702650-0001，471128-9010)
Specification
Turbine:
Turbine Wheel Diameter:76.9mm / 67.7mm
Turbine Trim:77.5
Compressor:
Compressor Wheel Diameter:80mm / 59.3mm
Compressor Trim:54.9
Turbo Model:GTP38
Engine Code:7.3L
Cooling Type:Oil cooling
Bearing Type: Floating Bearing
Thrust Bearing:270 degree
Turbo Type:Twin-Scroll
Horsepower: Up to 275 HP
Universal Fitment:No
Finish:Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Size:38x36 x 34 cm
Package Weight: 15850g

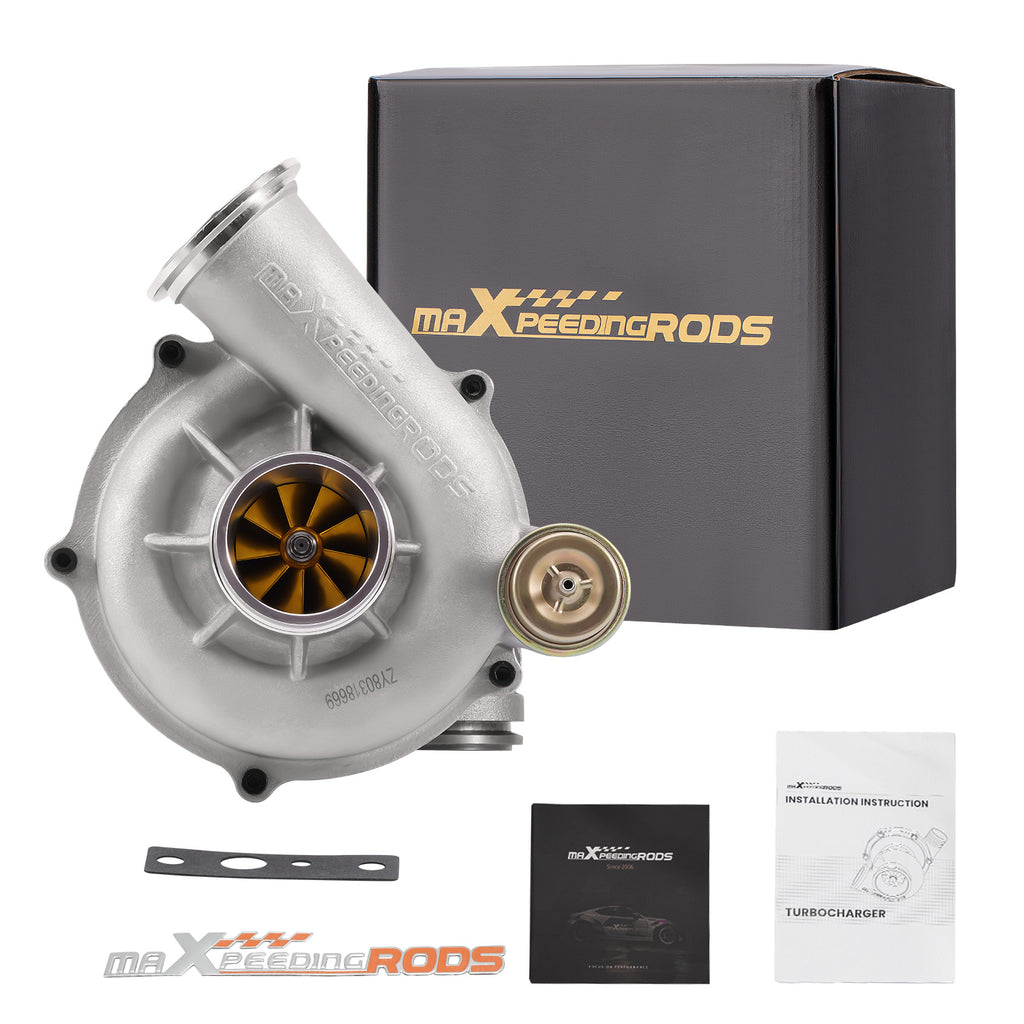

Package included
1xTurbocharger
1xOil port gasket
1xManual
1xBrochure
1xSticker
Feature
*Product Material
1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response
*Product Performance
1. OEM fitment turbo with upgraded material and performance
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory
4. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Warranty: one year warranty for any manufacturing defect
