Application
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Maximum PSI 18（1.2Bar）
This turbo is a universal application and designed for daily street use and
junior track use.
Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.
Specification
Exhaust Inlet Flange: T3 4 bolt Flange
Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")
Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: 44.7mm（length）/85.8mm（width）
Compressor Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm
Oil Inlet: M121.25 & 2M81.25
Oil Outlet: 2M81.25
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Wastegate: Internal Wastegate
Thrust Bearings: 270 Degrees
Horsepower: Up to 420 HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Polished
Condition: New
Accessories: You will get exactly as shown in the picture above
Package Size:30x 28x 24 cm
Package Weight: 9180g

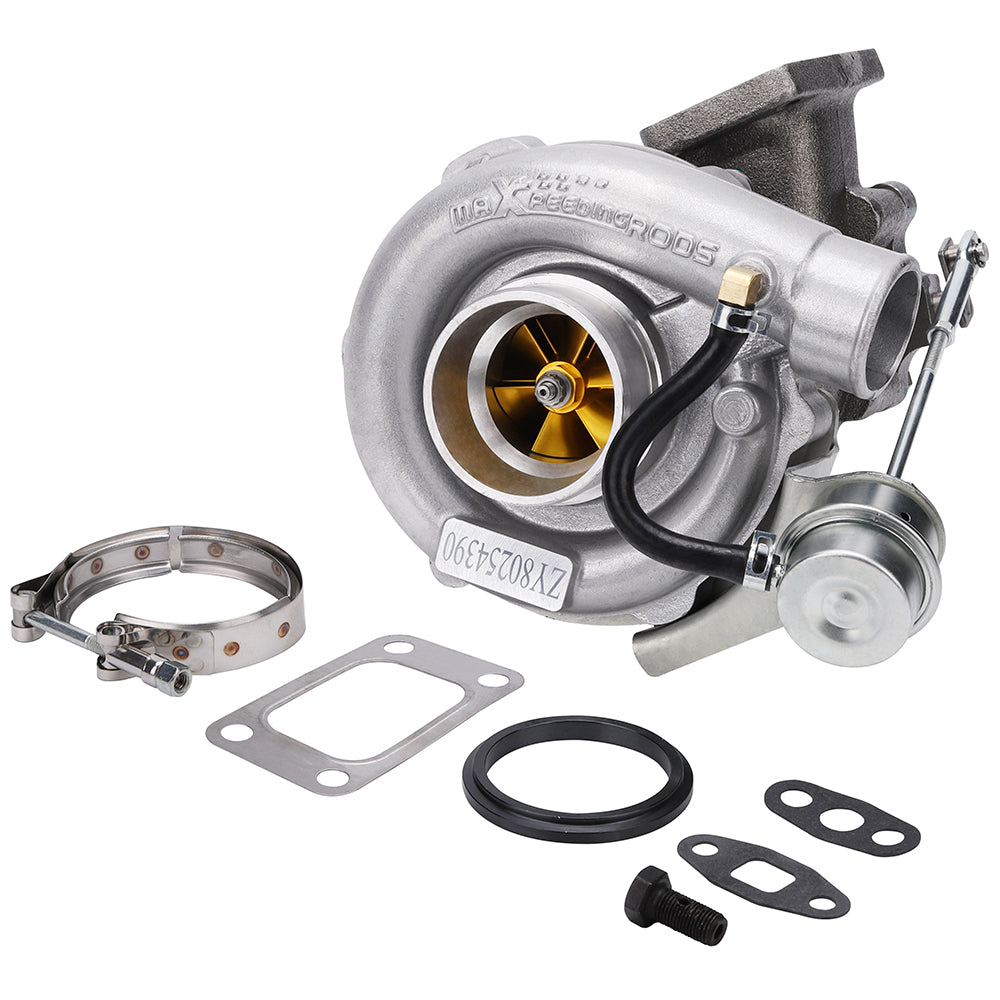

Package included
1xTurbocharger
1xFlange gasket
1xVband Clamp
1x Adapter
2xOil port gaskets
1xBolt
1xManual
1xBrochure
1xSticker
Feature
Product Material
1\. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
2\. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance
up to 1000℃
3\. Compressor housing：ZL104 aluminum with lightweight
4\. Billet compressor wheel：forged full-machined billet aluminum compressor
wheels with a larger horsepower range and better boost response
Product Performance
1\. Increase 20-40% power for your car
2\. Excellent high temperature resistance，high efficiency and durability
3\. Rich experience in turbo production and own factory
4\. High-Speed oil seal ring and Precision clearance
Technology Advantage:
1\. 100% balancing Test by TURBOTECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Note
Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Ensure exhaust outlet are well sealed by welding
The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
