Application
2006-2014 compatible for Mazda CX-7 2.3L MZR DISI 2.3 Turbo L3-VDT engine
190kW 258HP
2006-2014 compatible for Mazda speed 3 2.3L with MZR DISI 2.3 Turbo L3-VDT
engine 190kW 258HP
2006-2014 compatible for Mazda speed 6 2.3L with MZR DISI 2.3 Turbo L3-VDT
engine 190kW 258HP
Turbo Part Number and OEM Number
53047109904, 53047109907, L33L13700B,
L33L13700C, L3Y11370ZC, L3Y41370ZC,
L3Y31370ZC, L3YC1370Z, L3YC1370ZA
HOW TO IDENTIFY YOUR TURBOCHARGER:
If you are not sure fitment for your old turbo , please let us know this
information :
1 . The OEM code information from your original turbo nameplate
2 . The Engine code & KW , HP , Year for your car
3 . The Photos of your complete turbo
4 . Please note that the registration number cannot identify your turbocharger
Specification
Turbo Model：K0422-582
Engine：DISI L3-VDT
Cooled Type：Oil+Water cooled
Bearing Type: Journal Bearing
Thrust bearings: 270 Degrees
Condition: New

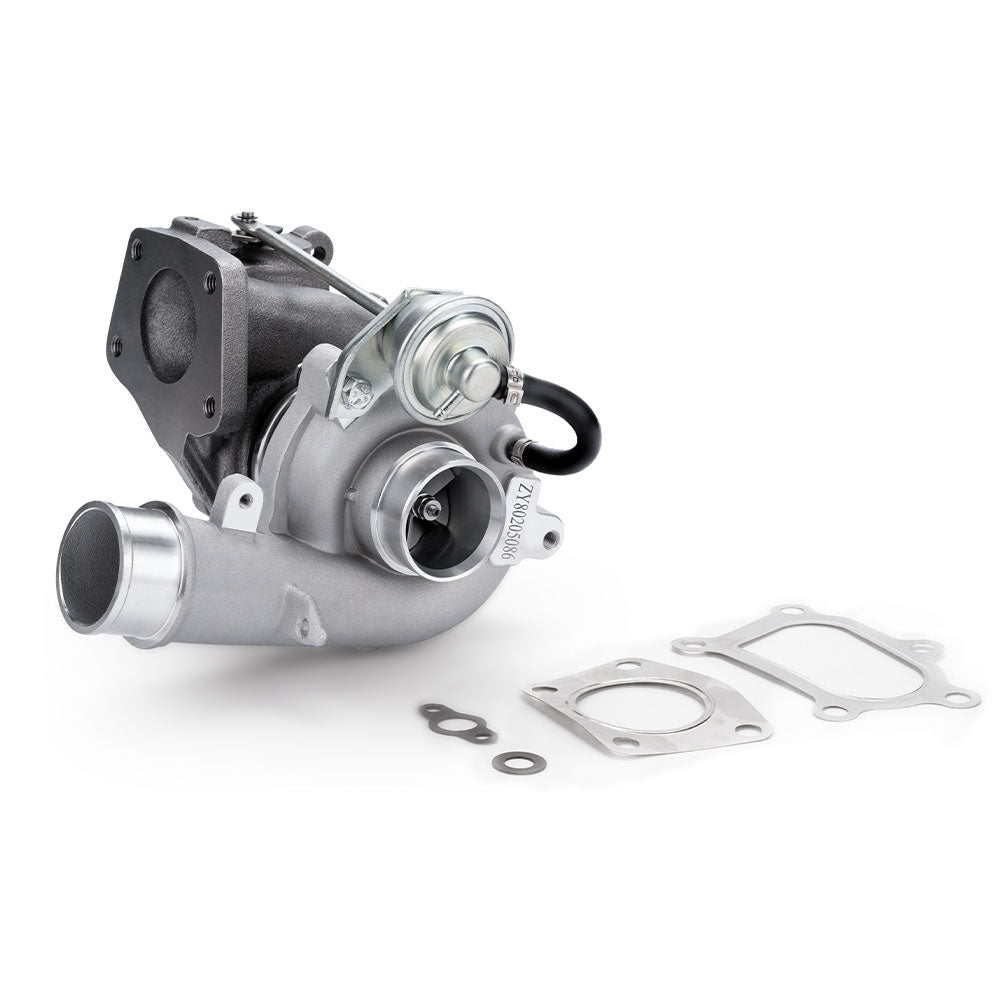

Accessories: You will receive the parts exactly as shown in the picture above
Features
1.DIRECT REPLACEMENT
Exact fit, direct replacement of the original turbocharger, fast and easy
installation, don’t need to do any change.
2.HIGH QUALITY
\- Turbine housing：Ductile iron QT450-10 shell with high-temperature
resistance up to 700 degrees Celsius.
\- Steel Turbine Wheel：Made from the special K418 alloy to achieve high
oxidation resistance and stability under high temperatures up to 900 degrees
Celsius.
\- Compressor housing：ZL104 aluminum.
\- Compressor wheel/blades:
Cast Aluminium with good gas tightness and corrosion resistance.
3.100% BALANCING TEST
Bearing Type: Journal Bearing
This Turbocharger has been balanced using the VSR machine technology. The use
time and reliability are increased, the car owners have no worries.
4\. Warranty: one year warranty for any manufacturing defect.
Notice
Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the correct one for your engine. If you need assistance finding the correct turbo for your car, please feel free to contact us.
Professional installation is highly recommended (No Instructions are Included)
