Application
Suitable for daily street use and junior track use.
Compatible for Toyota COASTER 4.2L D 1HD-T 1990 - 1993
Compatible for Toyota Land Cruiser 4.2L D 1HD-T 1990 - 1997
Notice:DO NOT for 1HDFT/1HDFTE engines.
OE/Part number
17201-17010,1720117010
Specification
Turbo Model: CT26
Engine code: 1HD-T 1HDT
Cooling Type: Water + Oil Cooled
Bearing Type: Journal Bearing
Thrust bearings: 270 Degrees
Hosepower: Up to 167hp
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Condition: New
Accessories: You will receive the parts exactly as shown in the picture above
Package Size:30x 28x 24 cm
Package Weight: 10960g

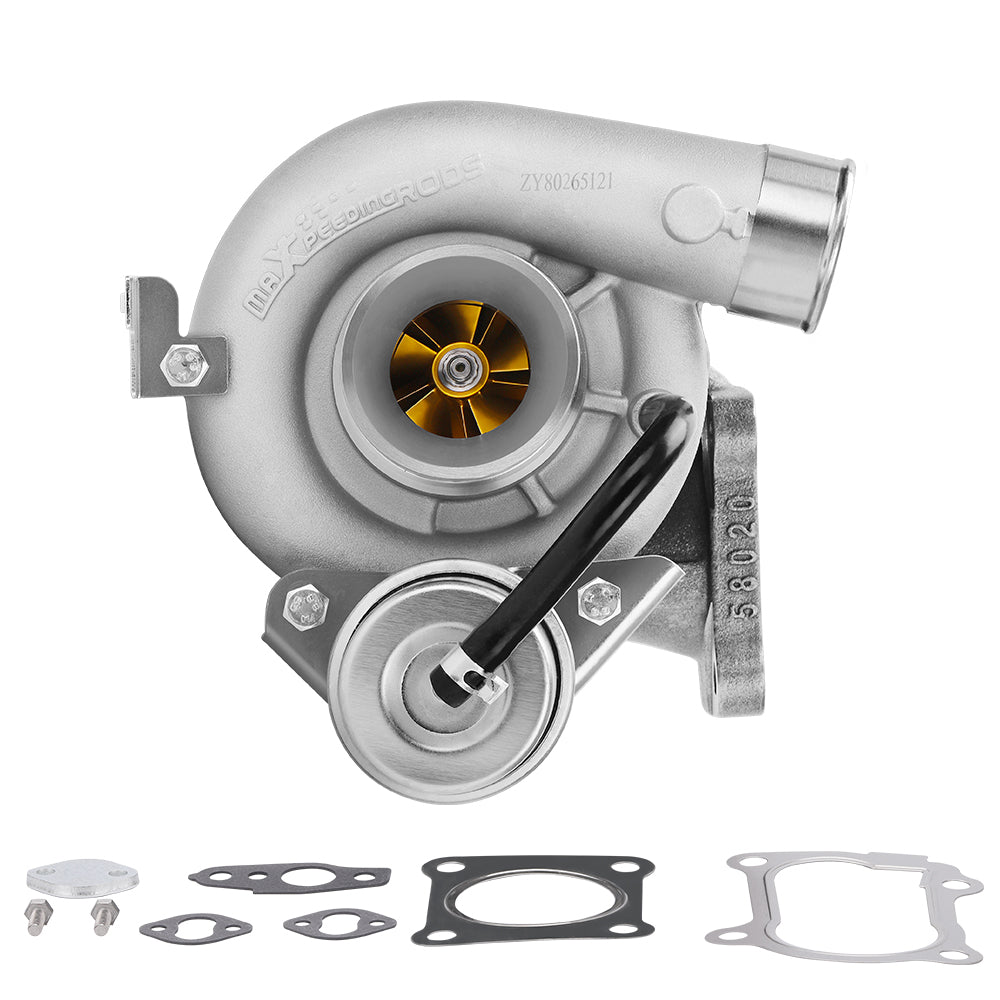

Package included
1xTurbocharger
2xFlange gaskets
3xOil/Water port gaskets
1xWater plug
2xBolts
1xManual
1xBrochure
1xSticker
Feature
Product Material
1\. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
2\. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance
up to 1000℃
3\. Compressor housing：ZL104 aluminum with lightweight
4\. Billet compressor wheel：forged full-machined billet aluminum compressor
wheels with a larger horsepower range and better boost response
Product Performance
1\. OEM fitment turbo with upgraded material and performance
2\. Excellent high temperature resistance，high efficiency and durability
3\. Rich experience in turbo production and own factory
4\. High-Speed oil seal ring and Precision clearance
Technology Advantage:
1\. 100% balancing Test by TURBOTECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Note
Please confirm your original turbo PART NUMBER before Purchasing
Professional installation is highly recommended
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
