Application
Compatible for Toyota 4-RUNNER 2L-T 2.4/4 90 D 1984- ,
Compatible for Toyota 4-RUNNER 2.4L TD 2L-T -2.4 90 D 1984-
Compatible for Toyota Hiace 2L-T 2.4/4 90 D 1995-
Compatible for Toyota Hiace 2.4L TD 2L-T -2.4 90 D 1990-
Compatible for Toyota Hiace TD (H12) 2LT -2.4 90 D 1995-98
Compatible for Toyota Hilux 2L-T 2.4/4 90 D 1997-
Compatible for Toyota Hilux 2.4L TD 2L-T -2.4 90 D 1997-
Compatible for Toyota Hilux TD (LN7RNZ) 2LT -2.4 90 D 1997-98
Compatible for Toyota LANDCRUISER 2LT -2.4 86 D 1990-96
Compatible for Toyota LANDCRUISER 2C67LT -2.4 86 D 1985-89
Compatible for Toyota LANDCRUISER 2L-T 2.4/4 0 D 1990-
Compatible for Toyota LANDCRUISER 2L-T 2.4/4 90 D 1985-
Compatible for Toyota LANDCRUISER 2.4L TD 2L-T -2.4 90 D 1985-
Compatible for Toyota LANDCRUISER 2.4L TD 2L-T -2.4 90 D 1990-
OE/Part number
17201-54060,1720154060,
17201-54061,1720154061,
Specification
Turbo Model :CT20
Engine:2L-T
Cooling Type:Water + Oil cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust Bearings: 270 Degrees
Hosepower: Up to 88 HP
Turbo Type:Individual
Condition: New

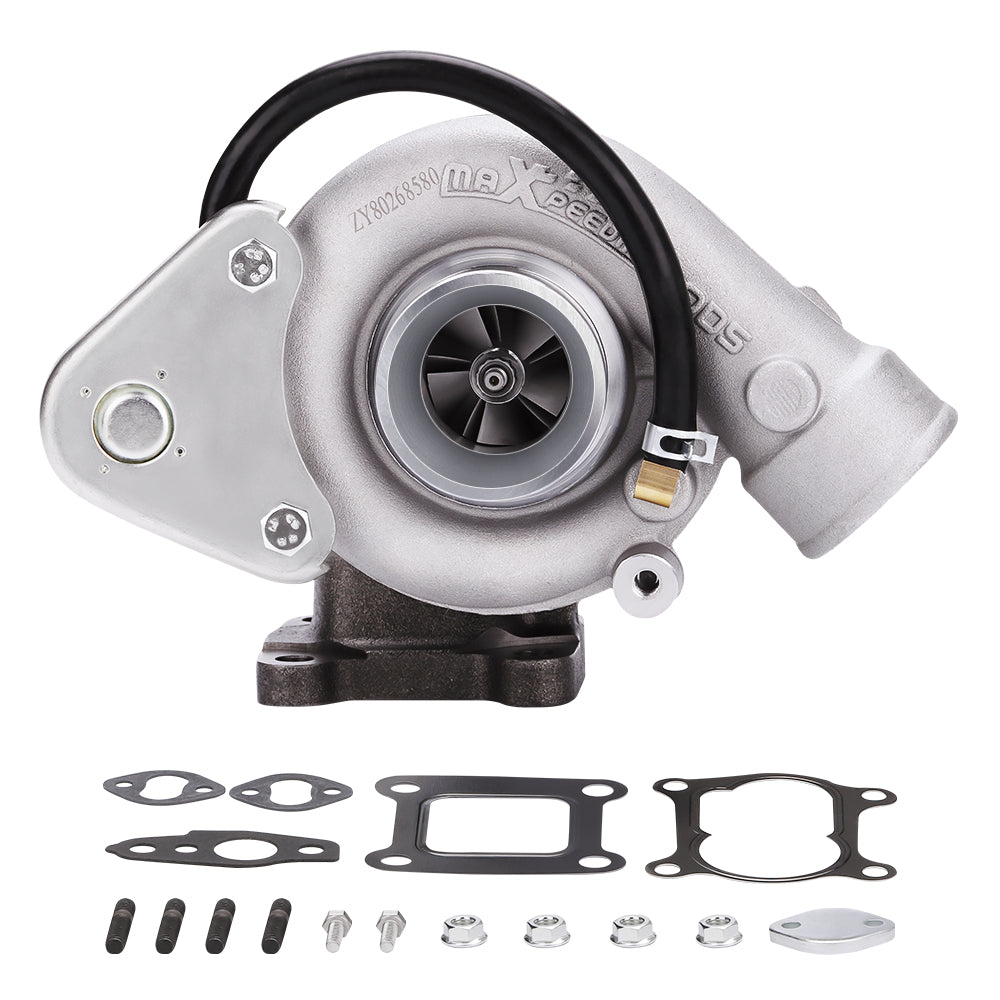

Accessories: You will receive the parts exactly as shown in the picture above
Package Size:25x 24 x 23 cm
Package Weight: 7740g
Package included
1xTurbocharger
2xFlange gaskets
3xOil/Water port gaskets
1xWater cooler block off plug set
4xBolts&Nuts
1xManual
1xBrochure
1xSticker
Feature
Product Material
1\. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2\. Steel turbine wheel：K418 alloy - high oxidation stability and resistance
up to 900℃
3\. Compressor housing：ZL104 aluminum with lightweight
4\. Compressor wheel/blades：Cast aluminium blades – superior air tightness &
corrosion resistance
Product Performance
1\. OEM-quality and size with little modification
2\. Rich experience in turbo production and own factory
3\. High-Speed oil seal ring and Precision clearance
Technology Advantage:
1\. 100% balancing Test by TURBOTECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Note
Please confirm your original turbo PART NUMBER before Purchasing
Professional installation is highly recommended
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
