Application
Compatiblefor 2005-10 compatible for Mazda speed 3/Axela with DISI MZR Engine
Compatiblefor 2005-10 compatible for Mazda speed 6 with DISI MZR Engine
Compatiblefor 2005-10 compatible for Mazda CX-7 European Version with DISI MZR
Engine
Compatiblefor 2005-10 compatible for Mazda 6/3, CX-7 (European) with DISI
Engine
OE/Part number
53047109905, 53047109901,
K0422-882, K0422-881,
L3M713700C, L3M713700D, L3K913700E
Specification
Turbo Model: K0422-881, K0422-882
Engine Code: DISI, MZR
Cooling Type: Water + Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust Bearings: 270 Degrees
Horsepower: 191 kw/256 bhp
Condition: New

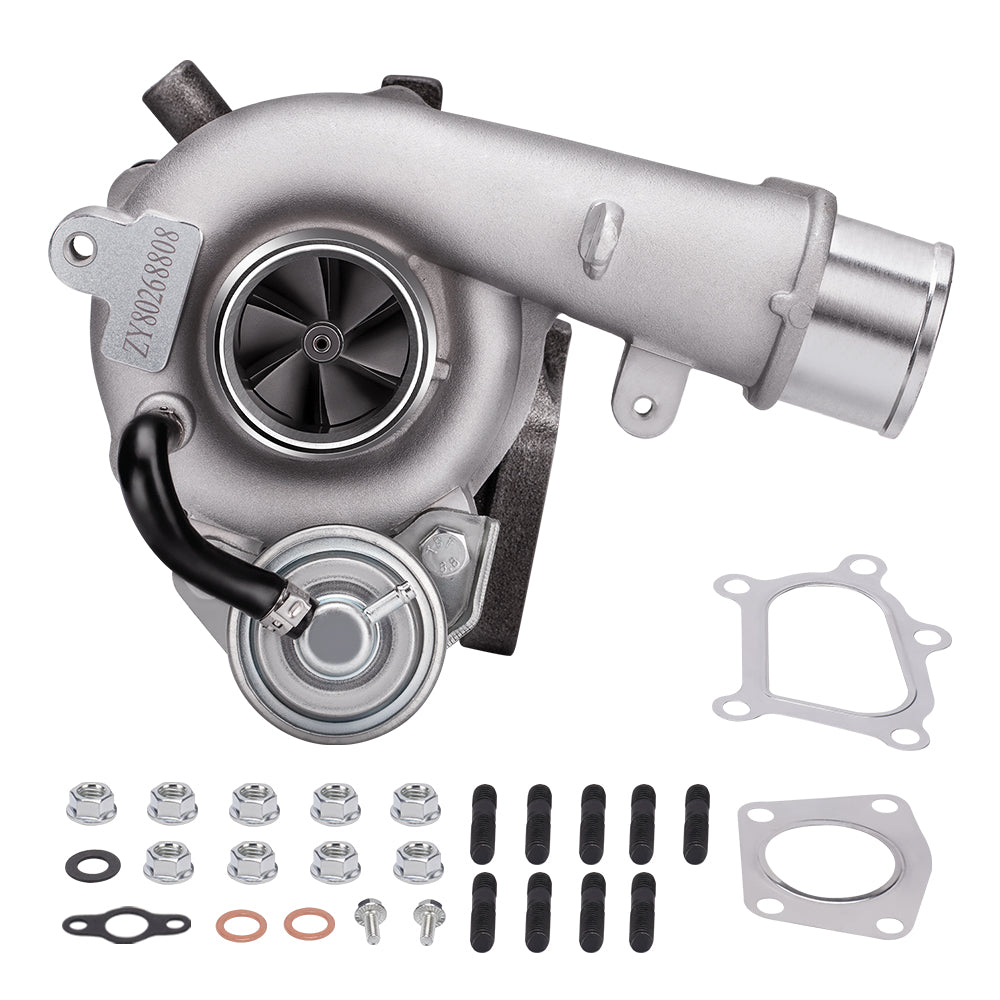

Accessories: You will receive the parts exactly as shown in the picture above
Package Size:25.5x24 x 23cm
Package Weight: 7600g
Feature
Product Material
1\. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2\. Steel turbine wheel: K418 alloy - high oxidation stability and resistance
up to 900℃
3\. Compressor housing: ZL104 aluminium with lightweight
4\. Compressor wheel/blades: Cast aluminium blades – superior airtightness &
corrosion resistance
Product Performance
1\. OEM quality and size with little modification
2\. Rich experience in turbo production and own factory
3\. High-Speed oil seal ring and Precision clearance
Product Certification: TÜV ISO 9001 CERTIFIED
Technology Advantage:
1\. 100% balancing Test by TURBO TECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Note
Please confirm your original turbo PART NUMBER before Purchasing
Professional installation is highly recommended
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
