Introduction
Looking to boost your car's horsepower? Is your car's original turbocharger
not performing well or need replacing? Maxpeedingrods stocks all the best OEM-
quality and upgraded turbochargers and turbo parts to give your car the power,
performance, and reliability you deserve. K04-001 turbocharger is a upgraded
turbo for the K03 model, which could provide the perfect solution for you to
boost your car up to 400hp.
Application
K04 model:
Compatible for Audi A3 upgraded Engine FT 190 4EB/4EA/4EC 1999-2009
Compatible for Audi TT upgraded Engine FT 190 4EB/4EA/4EC 2001-2009
Compatible for Volkswagen BEETLE, Seat IBIZA upgraded Engine 4EB/4EA/4EC
1996-2009
Note: The Car Make with K03 Model as below Need modify the intake pipe(our K04
compressor inlet is bigger than K03 model）:
1\. For Audi A3 with AGU, ALN, ARZ engine 110 KW, 150 PS 1996-2003
2\. For Audi A3 with AUQ, ARZ, APP engine 132 KW, 180 PS 1996-2003
3\. Compatible for Audi TT with AUQ engine 132 KW, 180 PS 1998-2006
4\. For Seat Leon with AJQ; APP; ARY; AUQ engine 132 KW, 180 PS 1998-2006
5\. For Skoda Octavia AUQ engine 132 KW, 180 PS 2001–2005
6\. For Volkswagen Golf/Bora/Jetta with AUQ, ARZ Engine 2000-2009
7\. For Volkswagen New Beetle with 1.8L-5V langs,along Engine 2000-05
Turbo Part Number & OEM Number
K04-001 part number/OE number:
53049500001,5304-950-0001, 5304 950 0001,
53049887501,5304-988-7501, 5304 988 7501,
06A-145-705HP, 06A145705HP,
IMPORTANT NOTICE:
This is an upgraded K04 turbo for K03-053 & K03 -052 (few modification may
need for K03-052/ K03-053)
K03-052 Part/OE number:
53039700052,5303 970 0052,5303-970-0052,
53039880052,5303 988 0052,5303-988-0052,
53039880094,5303 988 0094,5303-988-0094,
06A145704T, 06A145713D, 06A145713DX, 06A145713DV, 06A145713F,
06A145713FX,8299299564, 8299299564,
K03-053 Part/OE number:
53039880053,5303 970 0053,5303-970-0053,
53039880058,5303 988 0058,5303-988-0058,
06A145681H,06A145702P,06A145704S,
06A145713B,06A145713L,06A145713M,
Specification
Turbo Model: K04-001
Engine Model: 1.8L-5V
Engine Code: AJQ, APP, AUM, AUQ, ARY
Cooling Type: Water & Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: 400HP
Turbo Type: Individual
Universal Fitment: No
Finish:Matte
Condition: New

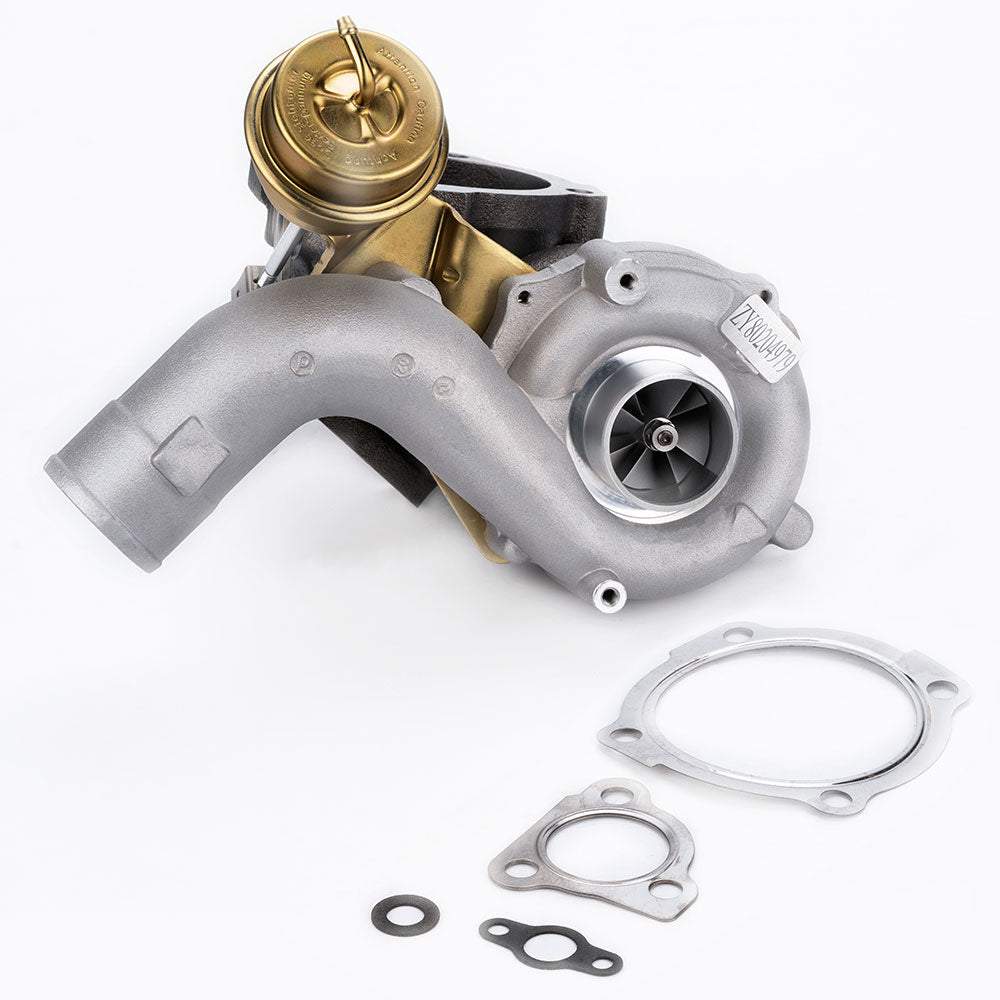

Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:30 x 27 x 24cm
Package Weight: 6900g
Feature
1\. Turbine housing：Ductile iron QT450-10 shell with high-temperature
resistance up to 700 degrees Celsius.
2\. Steel Turbine Wheel：Made from the special K418 alloy to achieve high
oxidation resistance and stability under high temperatures up to 900 degrees
Celsius.
3\. Compressor housing：ZL104 aluminum.
4\. Compressor wheel/blades:
\- Cast Aluminium with good gas tightness and corrosion resistance.
Installation suggestions
We highly recommend you make sure the points below before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause
the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be
damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger
because there are too much impurities in oil after overhauling which will
damage the replacement turbocharger immediately.
Please run the old turbocharger for 7-10 days and then replace to new
turbocharger and new engine oil.
Note
\- Please check the Turbo Model, Turbo Part Number and OEM Part Number on your
original Turbo to make sure this turbo is the correct one for your engine. If
you need assistance finding the correct turbo for your car, please feel free
to contact us.
\- Professional installation is highly recommended (No Instructions are
Included)
