Application
Compatible for Audi A4 A6 Quattro compatible for VW PASSAT 1.8T
AEB/ANB/APU/AWT Upgrade
compatible for Audi A4 1.8T AEB/ANB/APU/AWT20v/AVJ 1995 - 1999
compatible for Audi A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ/BEX 1999 -
Compatible for Audi A4 Upgrade 1.8T 1995 -
Compatible for Audi A6 1.8T AEB/ANB/APU/AWT 1997 - 1999
compatible for Audi A6 Quattro 1.8T AEB/ANB/APU/AWT 1999 -
Compatible for VW Passat 1.8T AEB/ANB/APU/AWT 1999 -
Compatible for VW Passat 1.8T upgrade 1999 -
OE/Part number
53039880005, 53039700005,
53039880013, 53039700013,
53039880029, 53039700029,
53039880025, 53039700025,
53039880073, 53039700073,
058145703L, 058145703LX, 058145703LV,
058145703J, 058145703JX, 058145703JV,
058145703K, 058145703KX, 058145703KV
058145703N,058145703NX , 058145703NV,
058145703Q，058145703QX,058145703QV，
058145703B, 058145703C, 058145703D，
058145703E, 058145703H,
Specification
Compressor :
Wheel Diameter: 50/37.5 mm
Trim: 56
Compressor Inlet: 44.5 mm
Compressor Outlet: 50 mm
Blades: 4 x 4 blades type
Turbine :
Wheel Diameter: 46/42 mm
Trim: 83.7
Blades: 12 blades
Inlet Flange: 3 Bolt Flange
Outlet Flange: 3 Bolt Flange
Turbo Model: k03 upgraded, K03S
Engine： AEB/ANB/APU/AWT/AVJ/BEX
Fuel: Gasoline
Cooling Type：Water & Oil Cooling
Horsepower Rating: up to 220 HP
Bearing Type: Floating Bearing
Thrust bearings: 270 Degrees
Turbo Type:Individual
Universal Fitment: No
Finish: Polished
Condition: New

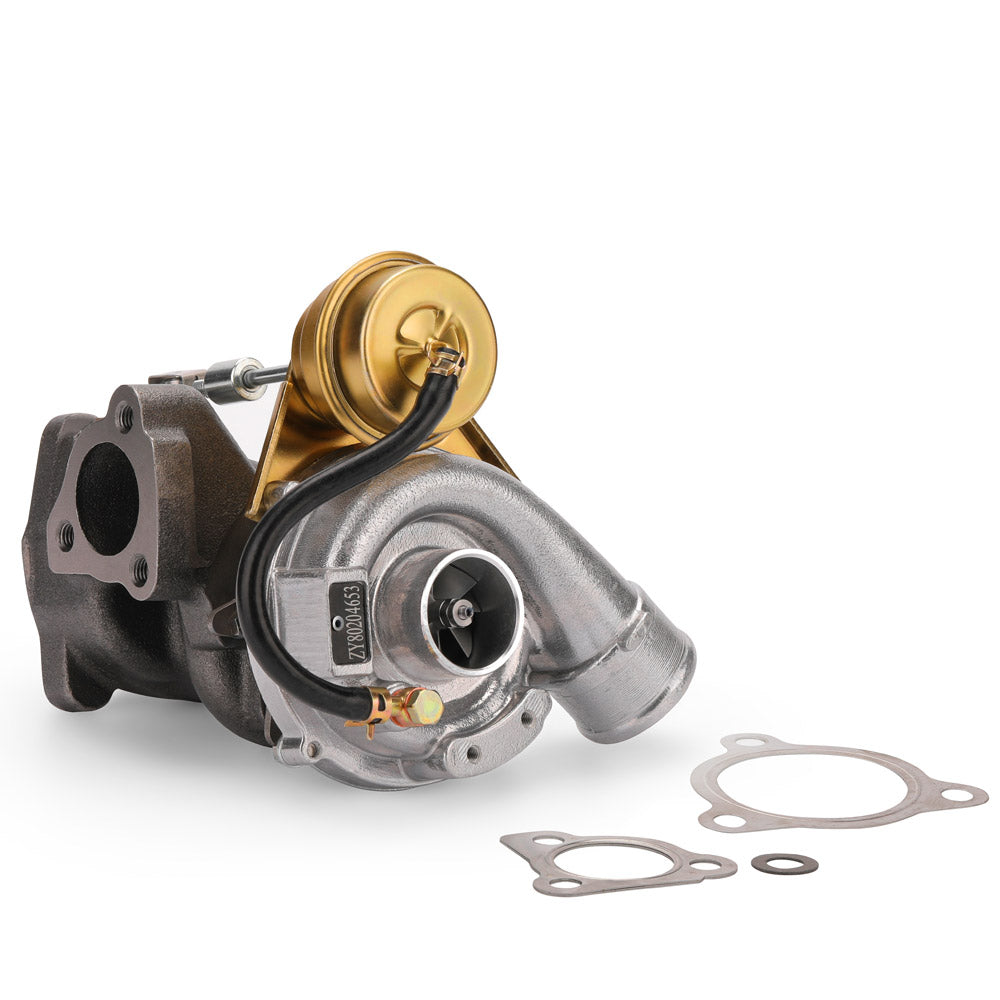

Accessories: You will get exactly as shown in the picture above
Package Weight：5750g
Package Size：262523cm
Package included
1xTurbocharger
2xFlange gaskets
4xOil/Water port gaskets
Feature
Product Material
1\. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2\. Steel turbine wheel：K418 alloy - high oxidation stability and resistance
up to 900℃
3\. Compressor housing：ZL104 aluminum with lightweight
4\. Compressor wheel/blades：Cast aluminium blades – superior air tightness &
corrosion resistance
Product Performance
1\. K03S upgraded turbine/compressor wheel with higher horsepower.
2\. Rich experience in turbo production and own factory
3\. High-Speed oil seal ring and Precision clearance
Technology Advantage:
1\. 100% balancing Test by TURBOTECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Note
Please confirm your original turbo PART NUMBER before Purchasing
Professional installation is highly recommended
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
