Introduction

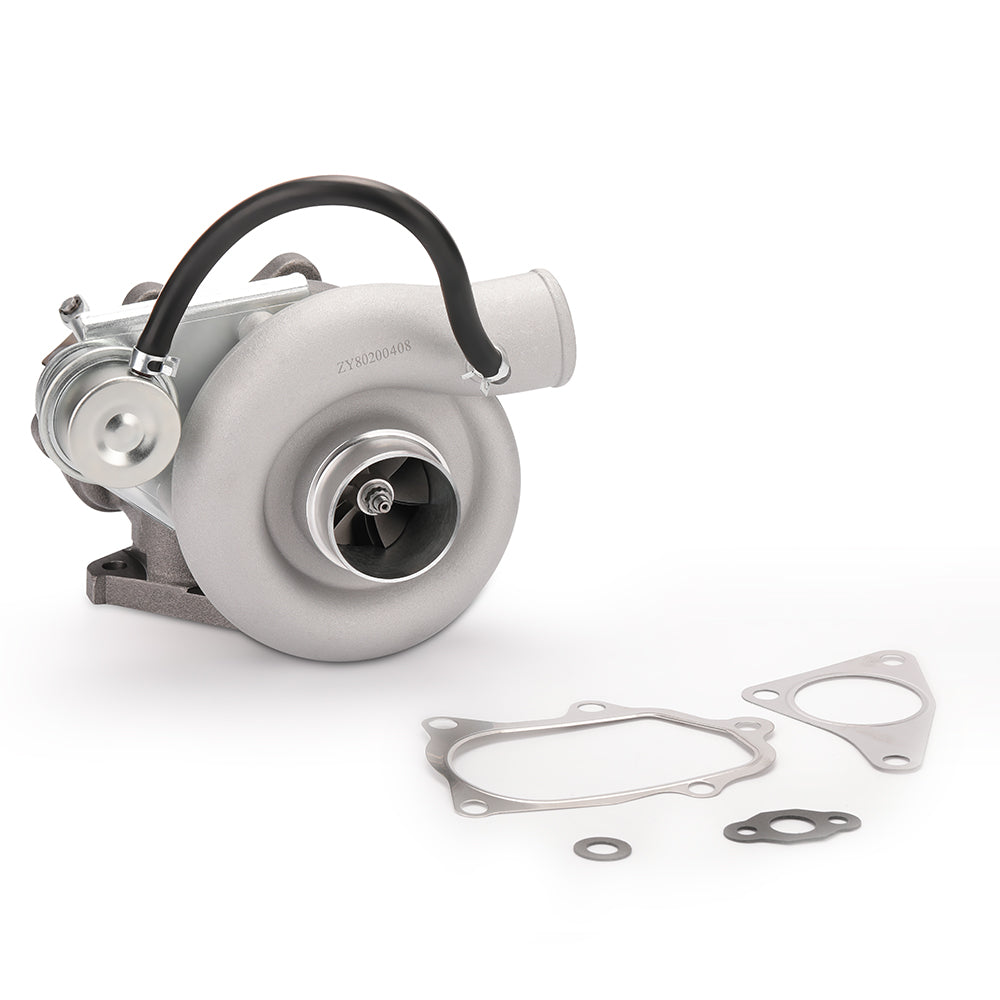

It's a upgraded Turbo for advanced drivers. MXR TD05 20G Turbo customizes a
unique specification that replaces the TD04 for a TD05H turbine wheel.
Furthermore, MXR also enlarges the turbine housing area to 7 square cm to
improve the exhaust efficiency. Don't hesitate to get a turbo to boost your
car's power.
Application
compatible for Subaru IMPREZA STI EJ20 EJ25 engine 2002 - 2006
Specification
Exhaust Outlet(Downpipe) Flange:5-Bolt Flange
Turbine Trim: 76.4
Turbine Housing: 7cm²
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm
Compressor housing inlet ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm
Oil Feed: M101.5
Oil Drain: 2M61.0
Water In/Out: M141.5
Bearing: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled
Warranty: one year for any manufacture defects
Features
Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700℃.
Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃.
Compressor housing: ZL104 aluminum.
Compressor wheel/blades:
\- Cast Aluminium with good gas tightness and corrosion resistance.
MAX HP: 420 HP.
100% BALANCING TEST: VSR machine technology.
Notice
Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
All Wagon engines and automatic sedan engines came with a TD04,all manual sedans including STI versions had a TD05. If your old turbo is TD04 one, some modification is required to fit the new turbo.
It's a direct bolt-on so nothing else would be required. But, to get it's full potential you'd need some additional upgrades. Intake, exhaust, more fuel, etc. it will also require custom tuning.
Professional installation is highly recommended(No Instruction Included)
All WRX Wagon engines and automatic sedan engines came with a TD04,all manual WRX sedans including STI versions had a TD05 model. If your original turbo is TD04 model, some modification(connections, bolts, fixed screws etc.) is required.
