Application
Compatible for Honda D17 /D17A 1.7L engine
Compatible for Honda D17 1.7L I4
Compatible for Honda/Acura D17 1.7L
Compatible for Honda Civic D17 1.7L 2001-2005
Compatible for Honda 1.7L D17 CIVIC D/E/G/H/LX/COUPE/EL
Compatible for Honda D17A 1.7L I4
Compatible for Honda Civic Coupe ES 2001-2005
Compatible for Honda Civic EX 2001-2006
Compatible for Honda Civic LX 2001-2006
Compatible for Honda Civic Si 2001-2005
Compatible for Honda Civic HX 2001-2005
Compatible for Honda Civic GX 2001-2005
Compatible for Honda Civic DX/VP 2001-2005
Compatible for Acura 1.7 EL 2001-2005
Compatible for Honda Stream 1.7 2000-2007
Compatible for Honda FR-V 1.7 2004-2007
Compatible for Honda Stream VTEC 2004

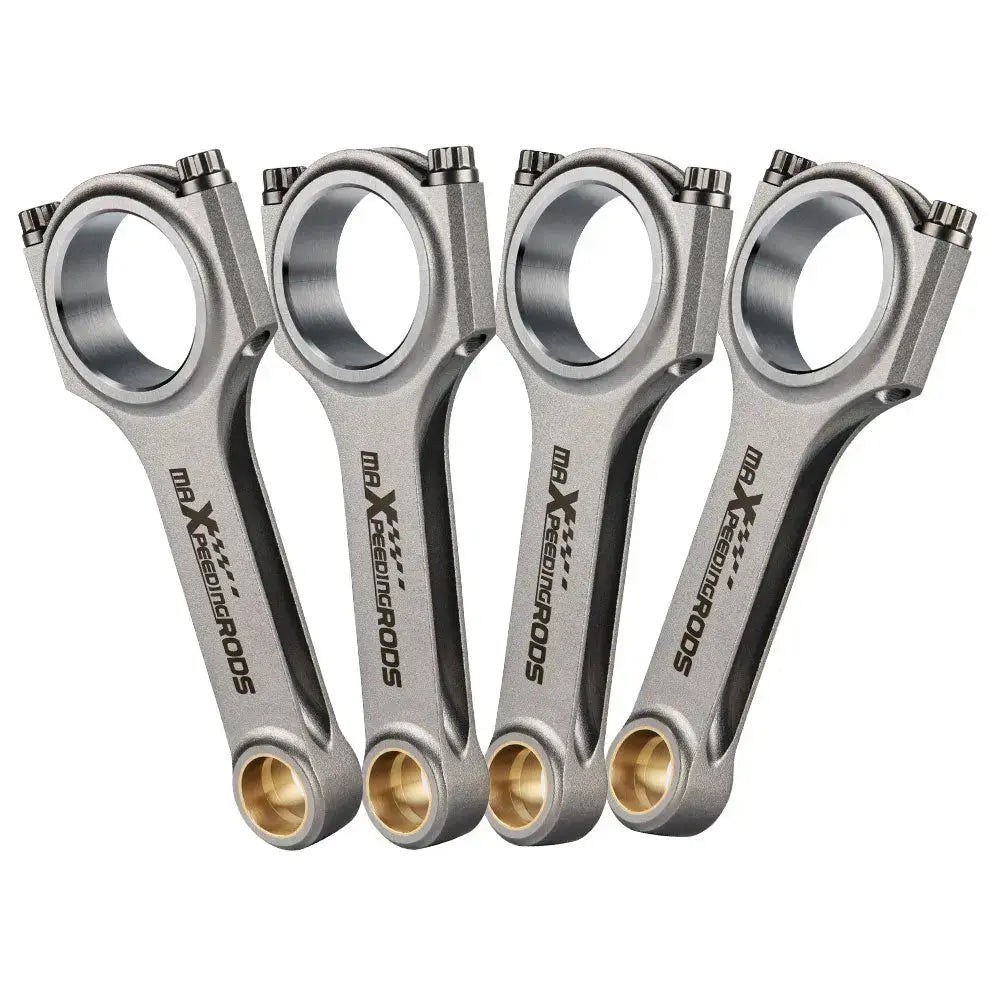

Specification
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
Advertised Horsepower Rating:200HP/piece
Top acceleration: 9000rpm
package size：28CM21CM10CM
Dimensions
Center to center length:137mm/5.394"
Big end diameter:48mm/1.89"
Small end diameter:19mm/0.748"
Big end width:19.8mm/0.78"
Small end width:21.59mm/0.85"
(Note: Please confirm the dimensions before purchase the connecting Rods)
Features:
Heat-treating & Shot-peened for remained consistent and strong. Shot-peened
finish to remove potential for stress risers (heat treatment and shot peened
treatment);
100% CNC machined, Precision rod cap alignment dowels (CNC machining, precise
positioning);
Bores finished to +/- .01 mm (hole finishing);
Balanced to within +/- 1 g per rod (weight tolerance +/- 1 g);
Each rod is magnetic particle tested to ensure free of flaws (magnetic
particle testing);
100% X-rayed, sonic tested (X-ray inspection, ultrasonic inspection);
There are titanium-plated upgrade models/non-bolt convenient models for
selection;
Overall: Increased horsepower and efficiency Specifically engineered for
demanding race applications Strength for high horsepower applications while
keeping leightweight in Mind.
Note:
There are titanium-plated upgrade models；
Professional installation is highly recommended ；
Custom Service:If there's no conrods you need on our site, we would be happy
to help determine your requirements and develop a solution with you to satisfy
your needs.
