Application:
Compatible for Chevrolet Small block（2.100" rod journal）
For General Motors/Compatible for GM/Chevrolet - LS-Series V8 engine
Available in 5.7" or 6.0" lengths;
Specification:
Type: Forged 4340 aircraft chrome moly quality steel for racing

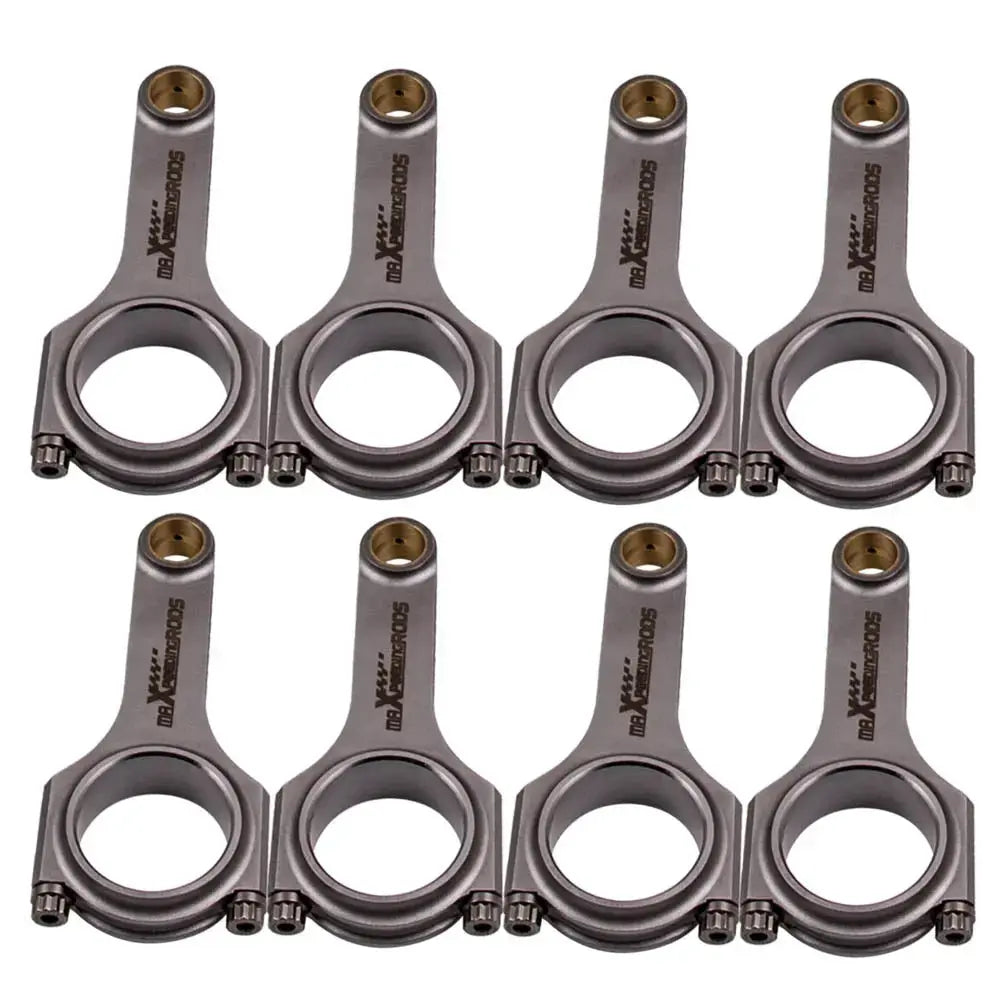

H-beam Conrods Quantity: 8 Pieces as showing in picture
Bolts: Including ARP 8740 7/16" bolts
Advertised Horsepower Rating: 200HP/piece
Top acceleration: 9000rpm
package size: 28cm24cm14cm
Dimension:
Center to center length:152.4mm/6"
Big end diameter:56.515mm/2.225"
Small end diameter:23.55mm/0.927"
Big end width:23.9mm/0.941"
Small end width:25.65mm/1.01"
Feature:
1\. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and
durability, dedicated for Racing；
2\. H-Beam design reduces weight without compromising strength；
3\. Heat-treating & Shot-peened for remained consistent and strong. Shot-
peened finish to remove the potential for stress risers；
4\. High precision CNC machined, Precision rod cap alignment dowels；
5\. Bores finished to +/- .01 mm；
6\. Balanced to within +/- 1 g per rod；
7\. Each rod is magnetic particle tested to ensure free of flaws；
8\. Use X-rayed, sonic tested；
9\. Custom Service.
Note:
Professional installation is highly recommended ；
Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
