Compatible for BMW S38 S38B35 S38B36 S38B38 e24 e34 e28 144mm ARP2000 Connecting Rod Rods

Application

Compatible for BMW S38 B35 1988 M5 M6
Compatible for BMW S38: straight-6 DOHC piston engine
S38B35 1986 - 1988, compatible for BMW E28 M5 (NA spec), compatible for BMW
E24 M6 (NA spec),; Compatible for BMW E24 M635CSi with catalytic converter
S38B36 1989 - 1993 compatible for BMW E34 M5 (NA spec) and Euro spec 1989–1992
S38B38 1992 - 1996 compatible for BMW E34 M5

Feature

\- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability,
dedicated for Racing
\- Designed and processed by CNC machine.
\- All big and small ends are finished with SUNNEN honing machine
\- Precision alignment sleeves positively locate the rod cap, maintaining big
end bore size and eliminating cap walk
\- 100% X-rayed, sonic tested and magnafluxed
\- Multi-stage heat treated
\- Shot peened to relieve stress
\- Come with the bronzed bushing suitable for the floating piston pin

Dimensions

Center to center length: 144mm
Big end diameter: 52mm
Small end diameter: 22mm
Big end width: 24mm
Small end width: 24mm

Specification

\- Performance Con Rods
\- Type: Forged 4340 aircraft chrome moly quality steel for racing

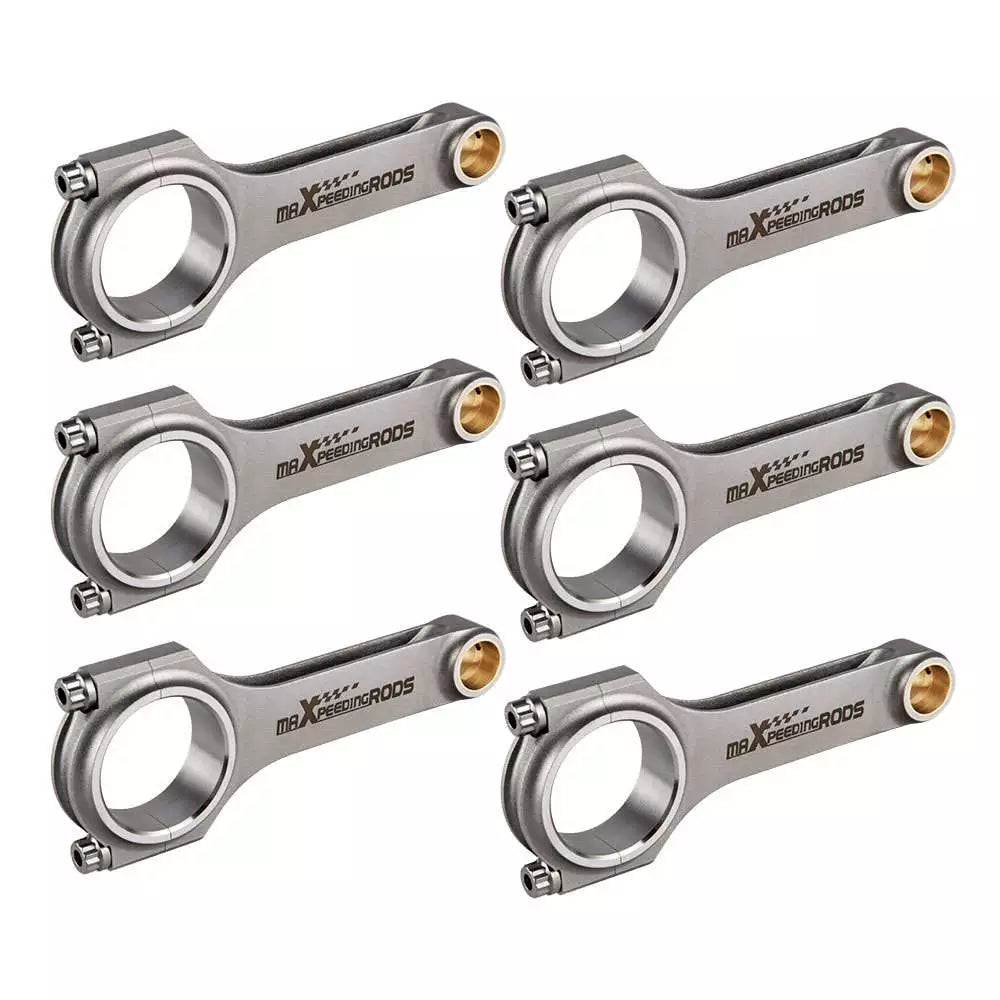

\- H-beam Conrods Quantity: 6 Pieces as showing in the picture
\- Bolts: Including ARP 2000 bolts
\- Note: Extra cost for upgrading to ARP L19 bolts
\- Bolts Size: ARP 2000 3/8" bolts
\- Tolerance: Balanced to +/- 1 gram inset
\- Piston Bolt Hole: +-4/1000mm
\- Power: 600hp ~ 800hp per set
\- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
\- Top acceleration: 9000rpm
\- Warranty: one year warranty for any manufacturing defect

Note

\- Professional installation is highly recommended (No Instruction Included)
\- Custom Service:If there's no conrods you need on our site, we would be
happy to help determine your requirements and develop a solution with you to
satisfy your needs.
