Application
Compatible for Mazda B6 1.6 / B6F Engine :
Compatible for Mazda 323 BG / 323F BG models B6F 1989-1994
Compatible for Mazda Miata /MX-5 B6 1.6 16-valve DOHC 1989-1993
Compatible for Mazda Xedos 6 / Eunos 500 1.6 L B6-9/B6-E I4 1992–1999
Compatible for Kia Mentor / Shuma / Spectra 1.6 L B6 I4 1997–2003
Compatible for Kia Rio First generation 1.6 L B6 I4 (petrol) 1999–2005
Compatible for Mazda Familia / 323 1.6 L B6 I4 1985–1989
Compatible for Ford Tonic GT-X Fifth Generation 1985–1989
Compatible for Mazda Familia / 323 1.6 L B6 I4 Sixth generation 1989–1994
Compatible for Mazda BP 1.8 Engine :
Compatible for Mazda Familia GT (European & Australian Market) 1989-1994
Compatible for Ford Laser TX3 (Australian Market)1989-1994
Compatible for Ford Laser KJ GLXi (Australian Market)1994-1998
Compatible for Mazda Artis "LX" VICS jm1 (North America Market)1994-1998
Compatible for Mazda Protege LX (with VICS)1990-1994
Compatible for Mazda Protege ES (Australian Market: 1994-1998 )1995-1998
Compatible for Mazda Infini 1990
Compatible for Mazda Protege GT (Canadian Market)1990-1991 and 1993
Compatible for Mazda 323 (European Market)1990-1993
Compatible for Ford Escort GT and LX-E 1991-1996
Compatible for Mercury Tracer LTS 1991-1996
Compatible for Kia Sephia RS, LS, for GS 1995-1997
Compatible for Mazda Familia (Japanese Market) 1994-1998
Compatible for Mazda Lantis 1994-1998
Compatible for Mazda MX-5/Miata (did not have VICS until 1999) 1994-1997
Compatible for Suzuki Cultus Crescent/Baleno/Esteem 1996-1998
Specification
Type: Forged 4340 aircraft chrome moly quality steel for racing

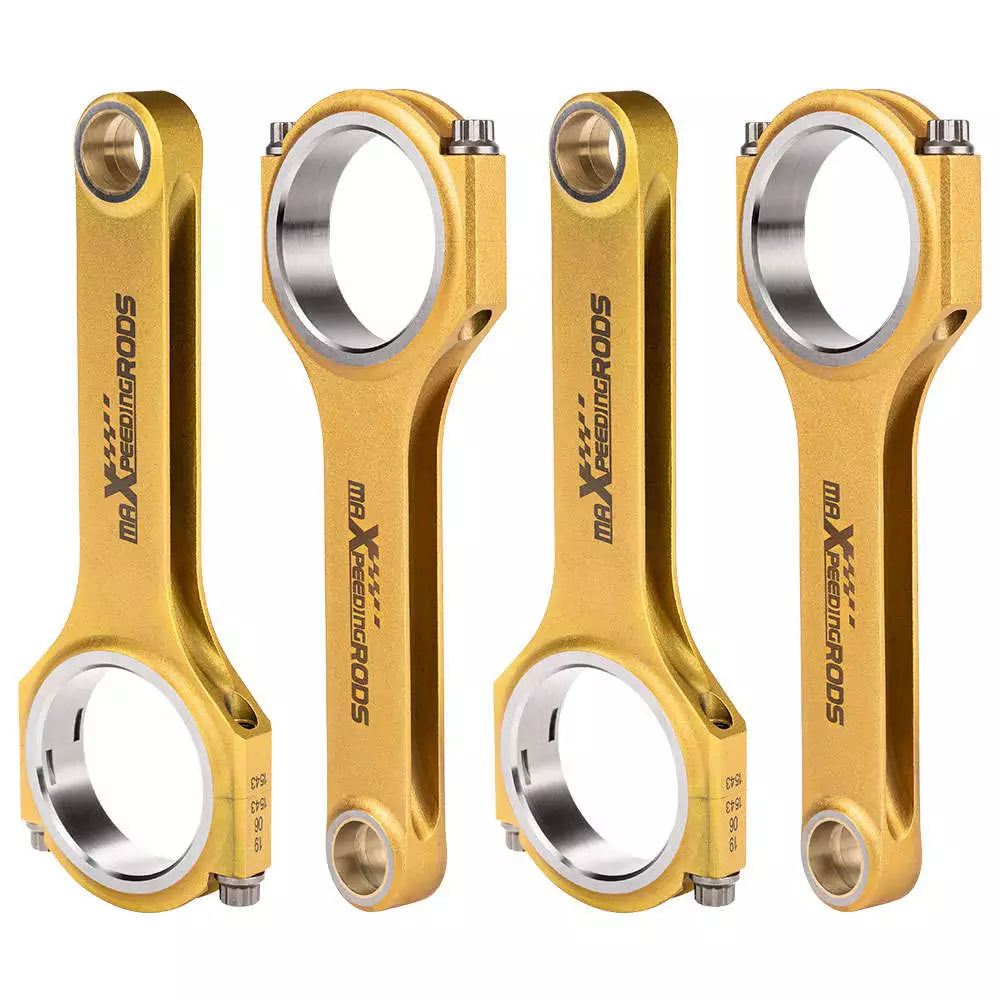

H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 5/16" bolts (Note: Extra cost for upgrading
to ARP L19 bolts)
Horsepower Rating：200HP/piece
Top acceleration: 9000rpm
The connecting rods all include ARP 2000 bolts, which are rated at 220,000
psi, and the optional ARP L19 material at 260,000 psi is available as an
upgraded product.
Warranty: one year warranty for any manufacturing defect
Dimensions
Center to center length: 133mm/ 5.2362 in.
Big end diameter: 48mm/ 1.8898 in.
Small end diameter: 20mm/ 0.7874 in.
Big end width: 21.84mm/ 0.8598 in.
Small end width: 21.84mm/ 0.8598 in
Feature
The density of titanium is significantly lower than that of steel, while
maintaining considerable strength, which means that it is lighter than steel,
but the strength is very similar.
1\. Titanizing can further improve the bending strength of the product
2\. Titanizing will not affect the weight of the connecting rod
3\. Provide a wear-resistant layer, which greatly prolongs the service life of
the parts
4.Material: Titanizing Forged SAE 4340 Chrome Moly Steel for the highest
strength and durability, dedicated for Racing.
5\. Genuine ARP 2000 bolts ,Optional ARP L19 fasteners available as an
upgrade.
6\. H-Beam design reduces weight without compromising strength.
7.Heat-treating & Shot-peened for remained consistent and strong, Shot-peened
finish to remove potential for stress risers.
8.100% CNC machined,Precision rod cap alignment dowels.
9.Bores finished to +/- .01 mm.
10.Balanced to within +/- 1 g per rod.
11\. Each rod is magnetic particle tested to ensure free of flaws.
12.100% X-rayed, sonic tested.
Note
\- Professional installation is highly recommended (No Instruction Included)
\- For any needs please contact us
