Application
Compatible for Toyota NR 8NR-FTS 1.2L engine
Compatible for Toyota Auris Corolla E180 1.2L 8NR-FTS VVT-iW 2012–2018
Compatible for Toyota C-HR 1.2L 8NR-FTS VVT-iW Turbo I4 2017–present
Compatible for Toyota Corolla (E170) Levin 1.2L 8NR-FTS 2013-2018
Specification
Material: Titanizing Forged 4340 aircraft chrome moly quality steel for racing

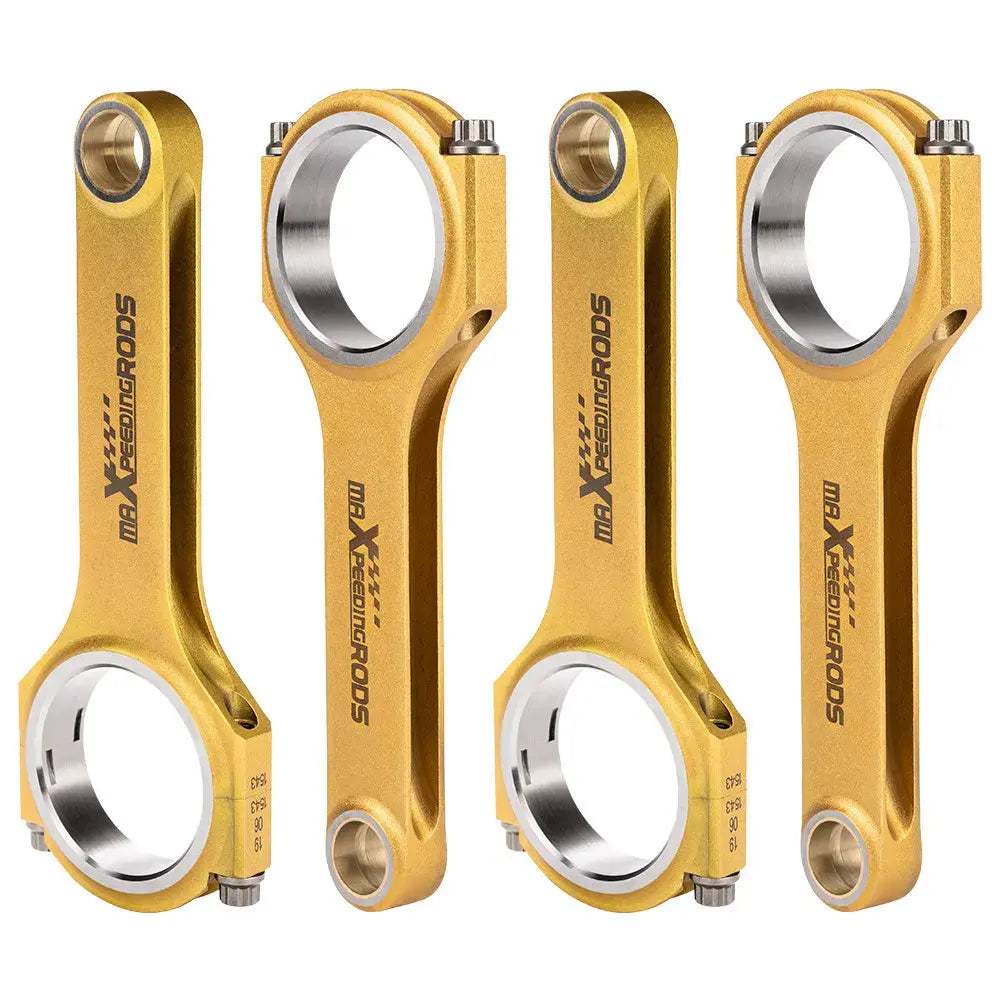

Quantity: 4 Pieces a set as showing in picture
Bolts: Including Genuine ARP 2000 3/8" bolts(Note: Extra cost for upgrading to
ARP L19 bolts)
Weight Tolerance: Balanced to +/- 1 gram in set
Warranty: one year warranty.
Dimensions
Center to center length: 149.2mm
Big end diameter: 45mm
Small end diameter: 20mm
Big end width: 18.7mm
Small end width: 18.7mm
Feature
\- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability,
dedicated for Racing
\- Designed and processed by CNC machine.
\- All big and small ends are finished with SUNNEN honing machine
\- Precision alignment sleeves positively locate the rod cap, maintaining big
end bore size and eliminating cap walk
\- 100% X-rayed, sonic tested and magnafluxed
\- Multi-stage heat treated
\- Shot peened to relieve stress
\- Come with the bronzed bushing suitable for the floating piston pin
Note
\- Professional installation is highly recommended (No Instruction Included)
\- Custom Service:If there's no conrods you need on our site, we would be
happy to help determine your requirements and develop a solution with you to
satisfy your needs.
