Application
Compatible for Porsche 911 Carrera 3 3.0L H6
Specification

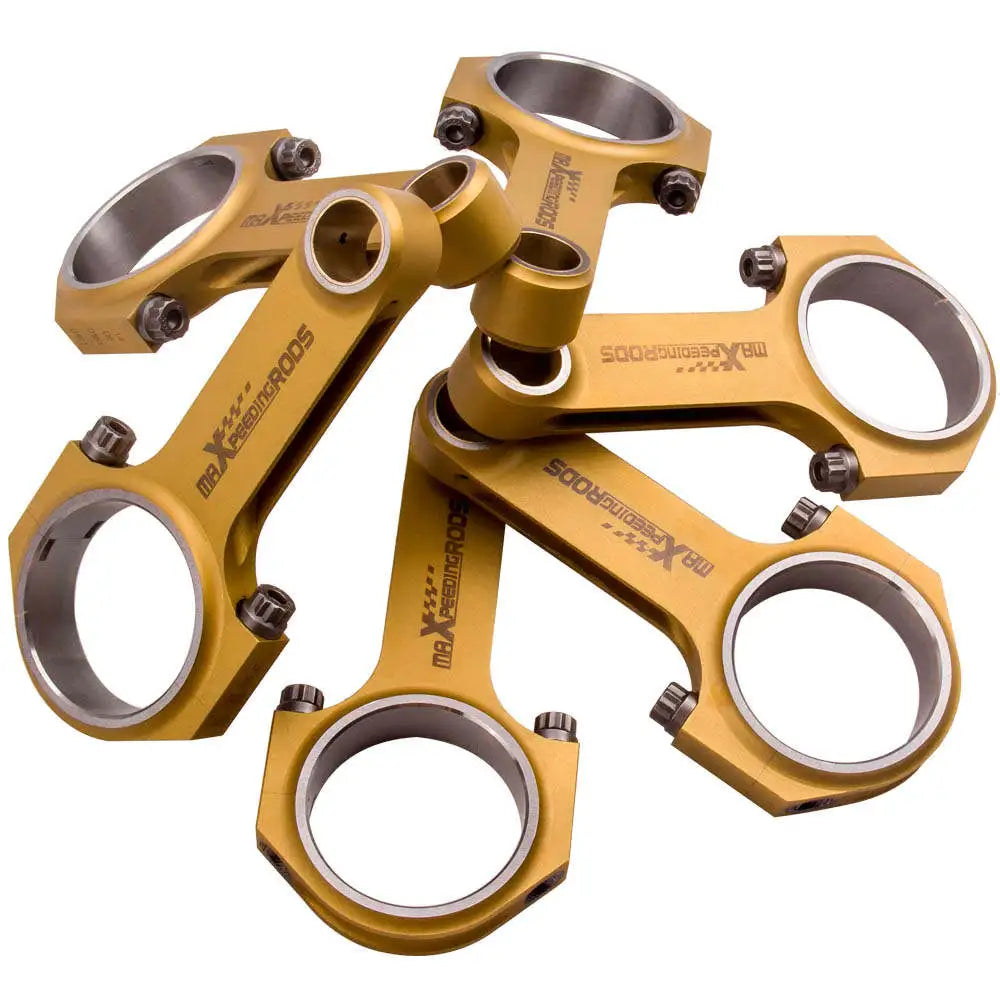

\- Performance Con Rods
\- Type: Forged 4340 EN24 Titanizing H-Beam Connecting Rod
\- H-beam Conrods Quantity: 6 Pieces as showing in picture
\- Bolts: Including ARP 2000 bolts
\- Note: Extra cost for upgrading to ARP L19 bolts
\- Bolts Size: ARP 2000 3/8" bolts
\- Tolerance: Balanced to +/- 0.5 gram in set
\- Piston Bolt Hole: +-4/1000mm
\- Power: 600hp ~ 800PS per set
\- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
\- Top acceleration: 9000rpm
\- Warranty: one year warranty for any manufacturing defect
Dimensions
Center to center length: 127.75mm
Big end diameter: 56mm
Small end diameter: 22mm
Big end width: xx
Small end width: xx
Feature
\- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability,
dedicated for Racing
\- Designed and processed by CNC machine.
\- All big and small ends are finished with SUNNEN honing machine
\- Precision alignment sleeves positively locate the rod cap, maintaining big
end bore size and eliminating cap walk
\- 100% X-rayed, sonic tested and magnafluxed
\- Multi-stage heat treated
\- Shot peened to relieve stress
\- Come with the bronzed bushing suitable for the floating piston pin
Note
\- Professional installation is highly recommended (No Instruction Included)
\- Custom Service: If there's no conrods you need on our site, we would be
happy to help determine your requirements and develop a solution with you to
satisfy your needs.
