Brand new radiator cooling fan blade for Universal use
QTY:2fans + Thermostat kit
Color：Black
Easy direct installation, require NO modification
OE Fitment or Replacement, Push or Pull Type
Instruction is not included.
Professional installation is highly recommended
Electric Fan:
16 inch reversible 12 volt electric cooling fan.
Universal fit for hot rods, classic engines and modern vehicles.
Powerful 120 watt motor will keep your engine cool.
Configured as an air puller out of the box.
Blade and wiring can be reversed to make the fan an air pusher.
For radiators, oil coolers, transmission coolers, condensers and more.
Includes mounting feet attachments and tie strap kit.
Fan Size： 16 Inch
Blade Type： Curved
Motor Size： 120 Watts
CFM Rating： 1000
RPM Rating： 2000±10%
Amp Draw：≤11 Amps
Material：Plastic Shroud/Steel Motor
Thermostat Kit:
Universal fit for any automotive application.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet hose or manifold.

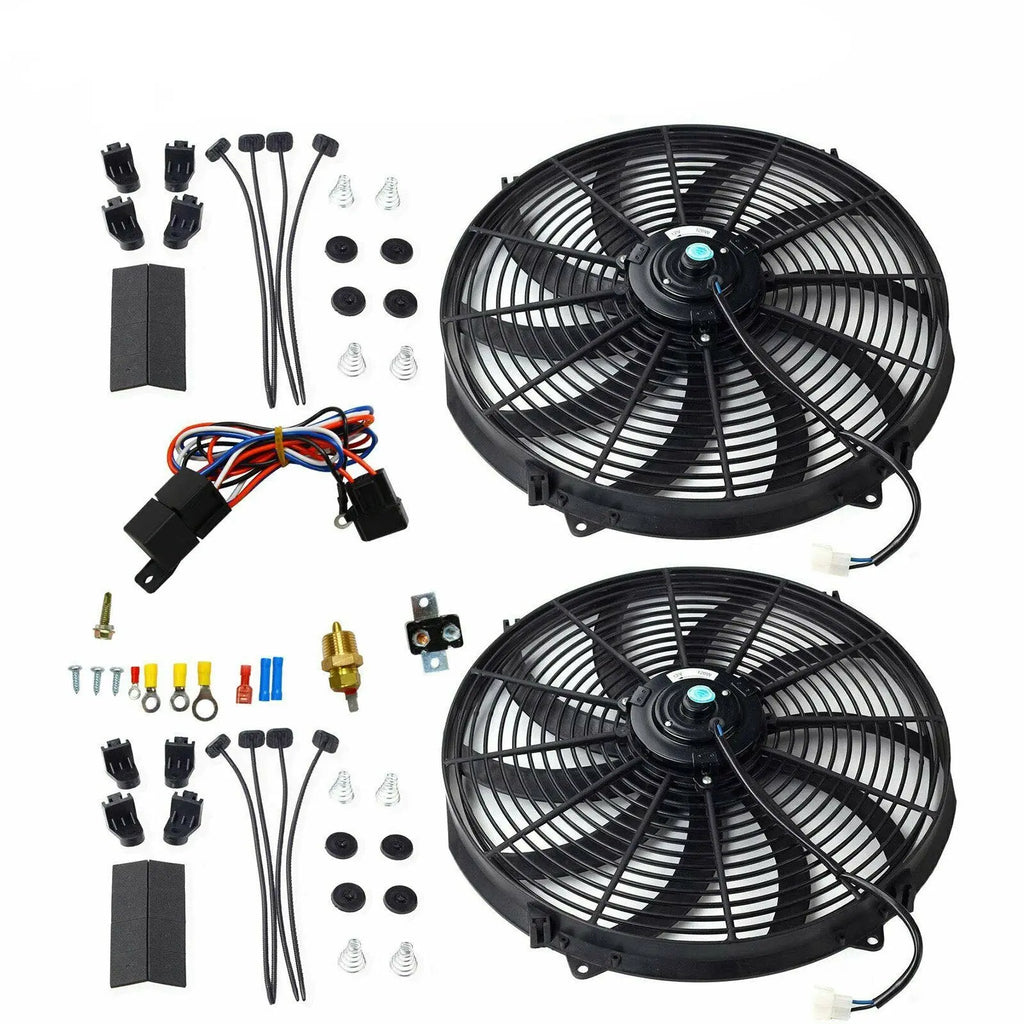

Package includes:
(1) - 3/8" NPT Thread-in Thermostat
(1) - 1/2" NPT Adapter
(1) - Wiring Harness w/ Mount
(1) - 40 Amp Relay
(1) - 30 Amp Circuit Breaker
(3) - Small Ring Terminals
(1) - Large Ring Terminal
(1) - Harness Mounting Screw
(2) - Butt Connectors
(2) - Sheet Metal Screws
(1) - Female Connector
Just as pictures show
