Application
1988 - 1991 compatible for Honda Civic GL DX LX D15B2 SOHC
1988 - 1991 compatible for Honda Civic Wagon Wagovan/DX D15B2 SOHC
1988 - 1991 compatible for Honda CRX D15B2 SOHC
1990 - 1995 compatible for Honda Concerto D15B2 SOHC (European Market)
1992 - 1995 compatible for Honda Civic LSi Hatch/Saloon (European Market)
1992 - 1995 compatible for Honda Civic DXi Hatch/Saloon (European Market)
Specification
\- Performance Con Rods
\- Type: Forged 4340 aircraft chrome moly quality steel for racing

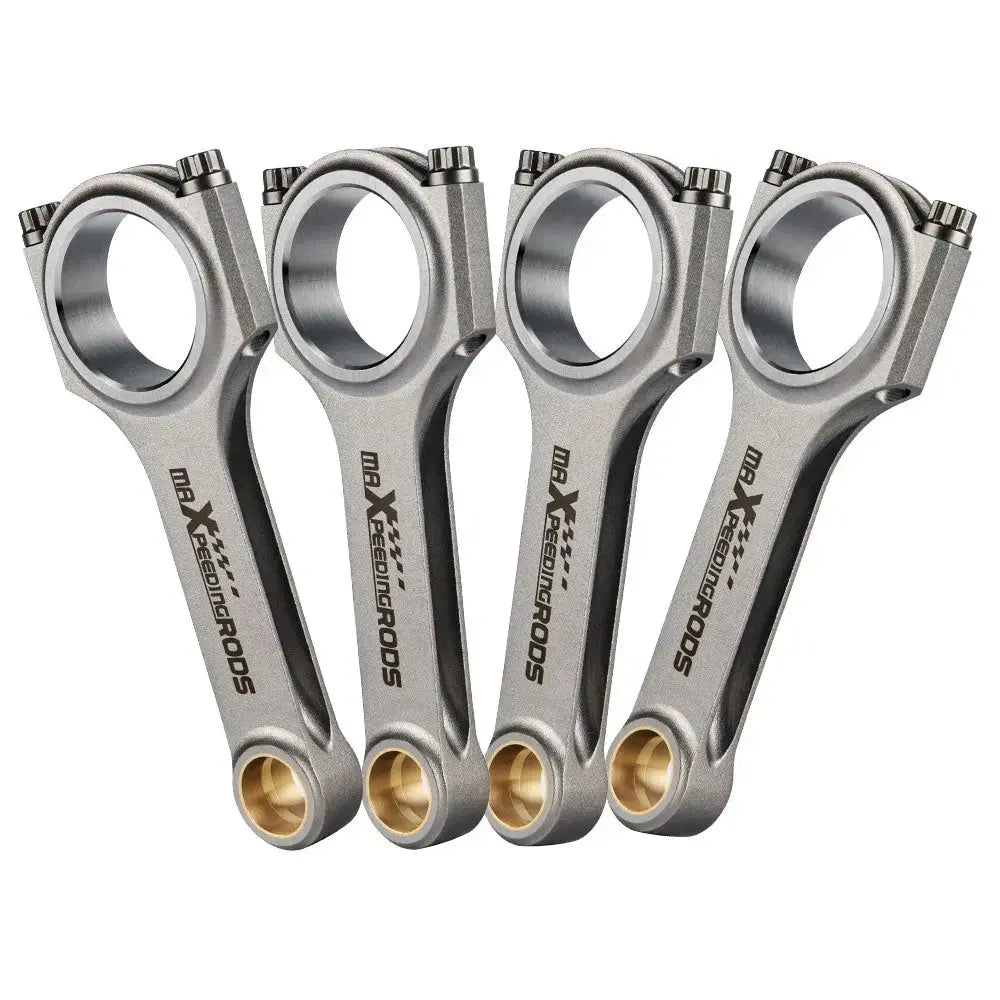

\- H-beam Conrods Quantity: 4 Pieces as showing in picture
\- Bolts: Including ARP 2000 bolts
\- Note: Extra cost for upgrading to ARP L19 bolts
\- Bolts Size: ARP 2000 5/16" bolts
\- Tolerance: Balanced to +/- 1 gram in set
\- Piston Bolt Hole: +-4/1000mm
\- Power: 600hp ~ 800PS per set
\- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
\- Top acceleration: 7000rpm
\- Warranty: one year warranty for any manufacturing defect
Dimensions
Center to center length: 134.5mm
Big end diameter: 45mm
Small end diameter: 19mm
Big end width: 22.8mm
Small end width: 18mm
Feature
\- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability,
dedicated for Racing
\- Designed and processed by CNC machine.
\- All big and small ends are finished with SUNNEN honing machine
\- Precision alignment sleeves positively locate the rod cap, maintaining big
end bore size and eliminating cap walk
\- 100% X-rayed, sonic tested and magnafluxed
\- Multi-stage heat treated
\- Shot peened to relieve stress
\- Come with the bronzed bushing suitable for the floating piston pin
Note
\- Professional installation is highly recommended (No Instruction Included)
\- Custom Service: If there's no conrods you need on our site, we would be
happy to help determine your requirements and develop a solution with you to
satisfy your needs.
\- Learn more about [CUSTOM
SERVICE](https://www.maxpeedingrods.com/custom_rods.html)
