Application
Compatible for compatible for Opel Compatible for Vauxhall Corsa 1.6 1.8 C16XE
Tigra X16XE
Specification
\- Performance Con Rods
\- Type: Forged 4340 aircraft chrome moly quality steel for racing

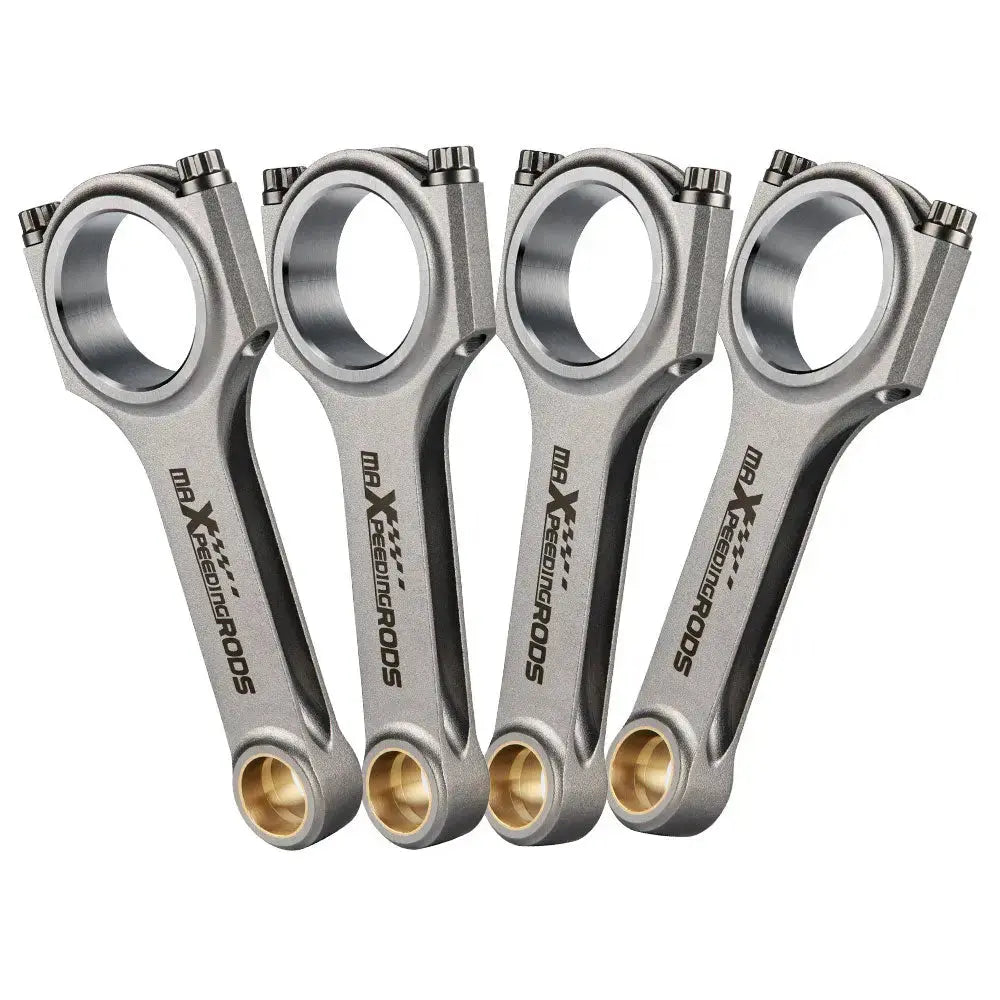

\- H-beam Conrods Quantity: 4 Pieces as showing in picture
\- Bolts: Including ARP 2000 bolts
\- Note: Extra cost for upgrading to ARP L19 bolts
\- Bolts Size: ARP 2000 5/16" bolts
\- Tolerance: Balanced to +/- 1 gram in set
\- Piston Bolt Hole: +-4/1000mm
\- Power: 600hp ~ 800PS per set
\- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
\- Top acceleration: 7000-9000rpm
\- Warranty: one year warranty for any manufacturing defect
Dimensions
Center to center length:129.75mm/5.108"
Big end diameter:46mm/1.811"
Small end diameter:18mm/0.709"
Big end width:21.8mm/0.858"
Small end width:17.9mm/0.705"
Feature
\- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability,
dedicated for Racing
\- Designed and processed by CNC machine.
\- All big and small ends are finished with SUNNEN honing machine
\- Precision alignment sleeves positively locate the rod cap, maintaining big
end bore size and eliminating cap walk
\- 100% X-rayed, sonic tested and magnafluxed
\- Multi-stage heat treated
\- Shot peened to relieve stress
\- Come with the bronzed bushing suitable for the floating piston pin
Note
\- Professional installation is highly recommended (No Instruction Included)
\- Custom Service:If there's no conrods you need on our site, we would be
happy to help determine your requirements and develop a solution with you to
satisfy your needs.
