Application
Compatible for VW TDI 1.9L PD90 PD100 PD115 Type 4340 EN24
Fitment Details:
Compatible for VW Golf MK III 1993-1999 Hatchback 1.9 TDI, 1.9 TDI Syncro
Compatible for VW Golf MK III 1994-1999 Estate 1.9 TDI, 1.9 TDI Syncro
Compatible for VW Golf MK V 2003-2009 Hatchback 1.9 TDI, 1.9 TDI 4motion
Compatible for VW Golf Cabriolet MK III 1995-2002 Convertible 1.9 TDI
Compatible for VW Jetta MK III 2005-2010 Saloon 1.9 TDI
Specification
Type: Forged 4340 aircraft chrome moly quality steel for racing

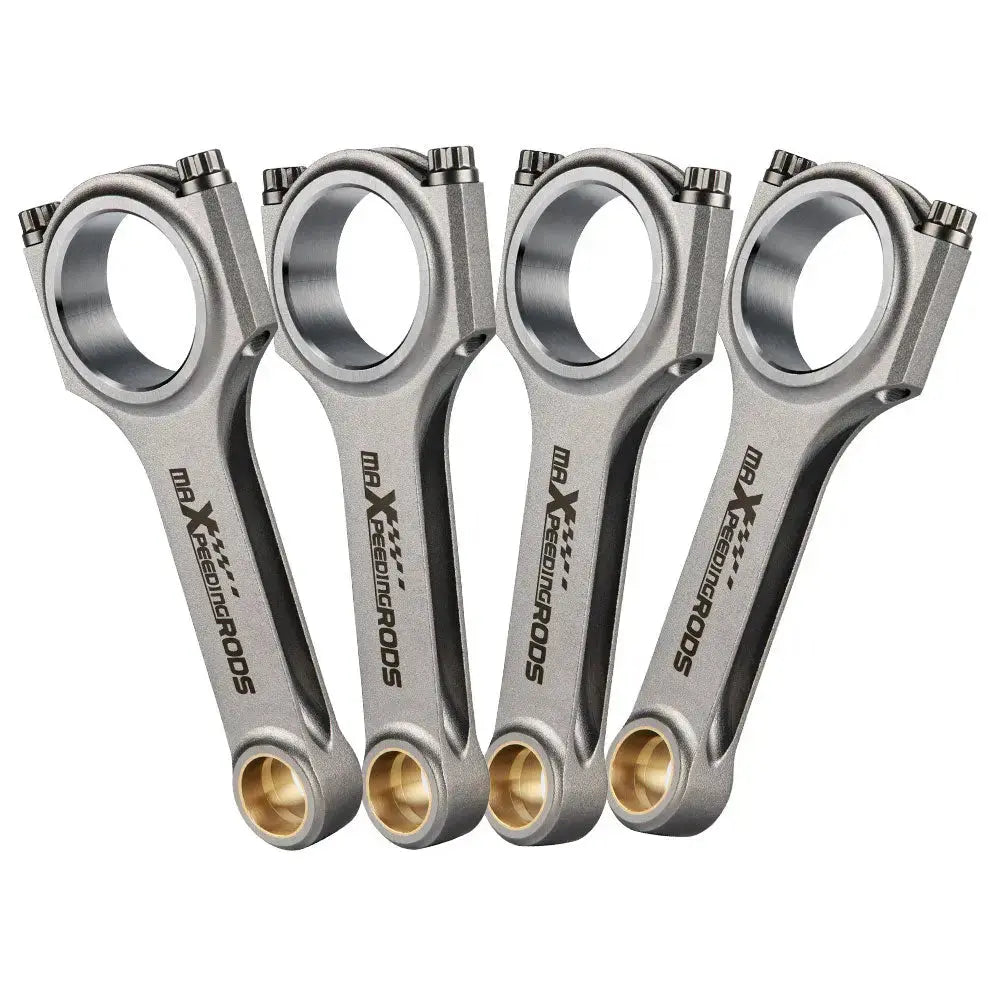

H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
Advertised Horsepower Rating:200HP/piece
Top acceleration: 9000rpm
Package size：28CM21CM10CM
Dimension
Center to center length:144mm/5.669"
Big end diameter:50.6mm/1.992"
Small end diameter:26.01mm/1.024"(tapered small end)
Big end width:25mm/0.984"
Small end width:25mm/0.984"
Feature
\- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability,
dedicated for Racing
\- Designed and processed by CNC machine.
\- All big and small ends are finished with SUNNEN honing machine
\- Precision alignment sleeves positively locate the rod cap, maintaining big
end bore size and eliminating cap walk
100% X-rayed, sonic tested and magnafluxed
\- Multi-stage heat treated
\- Shot peened to relieve stress
\- Come with the bronzed bushing suitable for the floating piston pin
Note
There are titanium-plated upgrade models；
Professional installation is highly recommended；
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
