Application
Compatible for Nissan R32/R33/R34 2.5 GTS 2.6 GTR RB25DET RB26DET
Compatible for Nissan Skyline GTS GTR R32 R33 R34 RB25 RB26 2.6 GTR RB25DET
RB26DET
Compatible for Nissan 720 2.5L 2488CC 152Cu. In. l4 1983 - 1986
Compatible for Nissan Altima 2.5L 2488CC 152Cu. In. l4 2002 - 2018
Compatible for Nissan Frontier 2.5L 2488CC 152Cu. In. l4 2005 - 2018
Compatible for Nissan Rogue 2.5L 2488CC 152Cu. In. l4 2008 - 2018
Compatible for Nissan Sentra 2.5L 2488CC 152Cu. In. l4 2002 - 2012
Specification
\- Performance Con Rods
\- Type: Forged 4340 aircraft chrome moly quality steel for racing

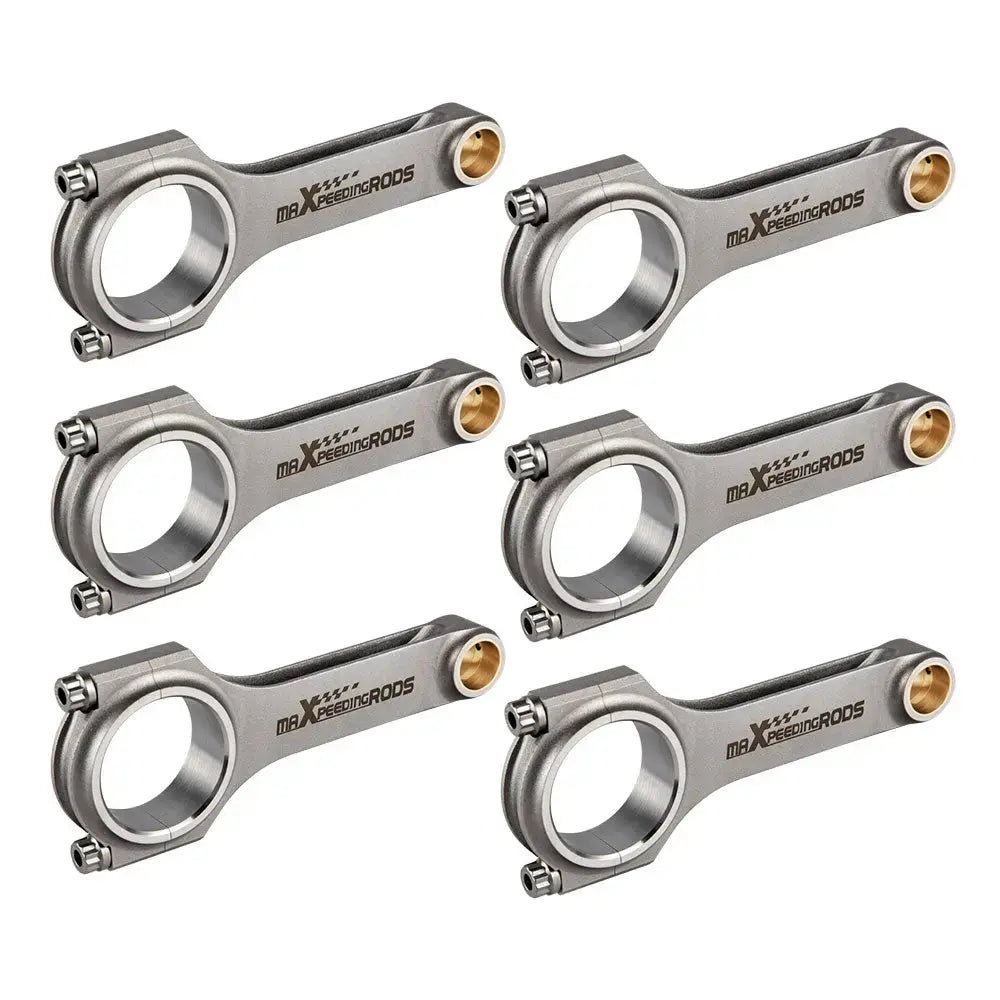

\- H-beam Conrods Quantity: 6 Pieces as showing in picture
\- Bolts: Including ARP 2000 bolts
\- Note: Extra cost for upgrading to ARP L19 bolts
\- Bolts Size: ARP 2000 3/8" bolts
\- Tolerance: Balanced to +/- 1 gram in set
\- Piston Bolt Hole: +-4/1000mm
\- Power: 600hp ~ 800hp set
\- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
\- Top acceleration: 9000rpm
\- Warranty: one year warranty for any manufacturing defect
Dimensions
Center to center length: 121.5mm
Big end diameter: 51mm
Small end diameter: 21mm
Big end width: 21.8mm
Small end width: 21.8mm
Feature
\- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability,
dedicated for Racing
\- Designed and processed by CNC machine.
\- All big and small ends are finished with SUNNEN honing machine
\- Precision alignment sleeves positively locate the rod cap, maintaining big
end bore size and eliminating cap walk
\- 100% X-rayed, sonic tested and magnafluxed
\- Multi-stage heat treated
\- Shot peened to relieve stress
\- Come with the bronzed bushing suitable for the floating piston pin
Note
\- Professional installation is highly recommended (No Instruction Included)
\- Custom Service:If there's no conrods you need on our site, we would be
happy to help determine your requirements and develop a solution with you to
satisfy your needs.
