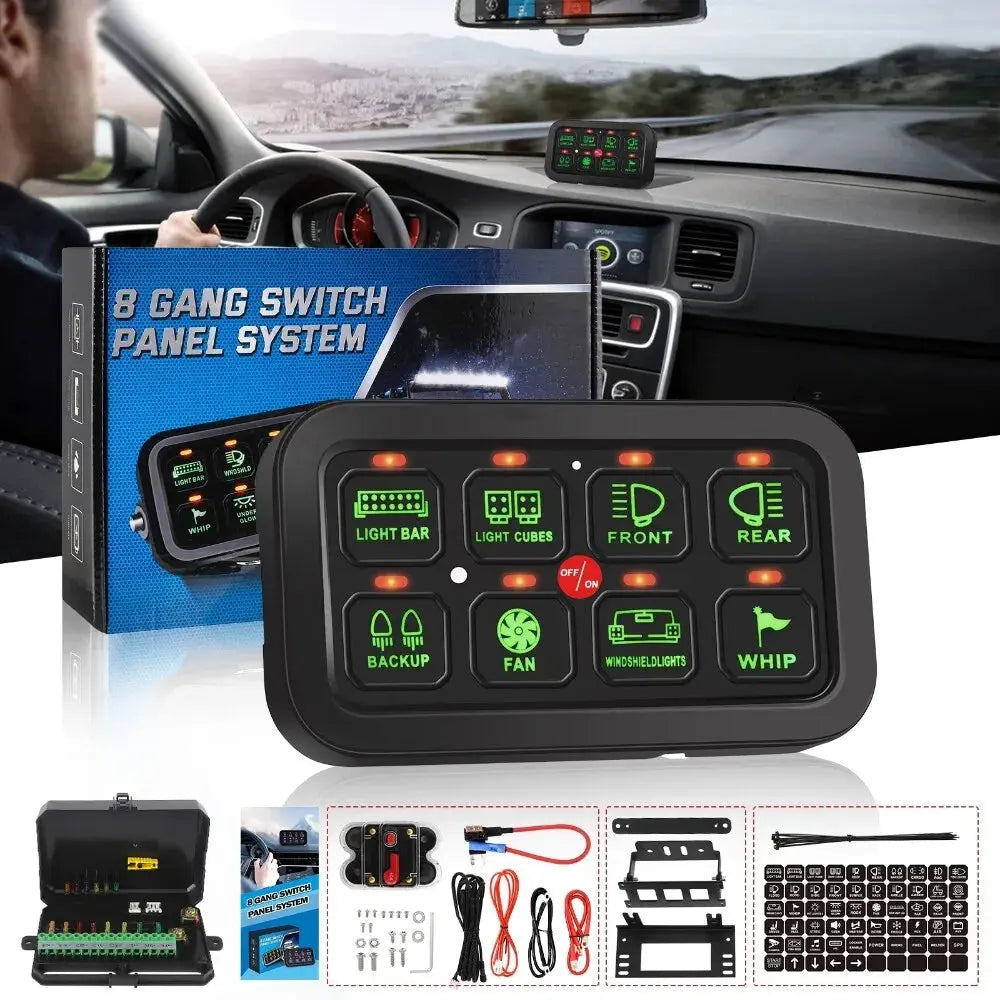

Operating voltage: 12-24V; Max power rating: 1200 Watts. This powerful
switch panel can control 8 lights & accessories from one convenient place.
Features high sensitivity, stability and strong anti-interference ability, you
can customize your own switch panel with 50Pcs self-adhesive labels. It will
be the best way to clean up wiring and adding just one panel to control
everything.
Universal Switch Panel is a great control system to centralize all your
accessories;
★ Works with LED Light Bars and other electrical accessories;
★ Dimmable back-light display（ Gree）
★ On/Off buttons switches
★ All necessary components and hardware included
★ Panel Dimensions: 4.5" x 0.6" x 2.6"
★ Circuit Box Dimensions: 7.5" x 1.3" 4.1"
★ Material: the panel is made out of high quality ABS; the circuit box is
made out of aluminum
★ Fits many applications: UTV, for Polaris RZR XP, Turbo, for Can-am, Sand
Rail, Side by Side, Truck, Jeep, Car, Race Car, Off-Road, SUV, Tractor, GMC,
Motor Home Utility and high-performance vehicles
★ Can be installed in dash board, dash panel, center console, a-pillar
etc
★ Package includes: 1 pc Seat Belt Harness (for 1 seat)
★ Input voltage: 12V/24V DC
★ Maximum Power: 600W at 12V / 1200W at 24V
★ Maximum Current: 60A
★ Maximum Instantaneous Current: 100A
★ Operating temperature: -40 C - 150 C
★ Auto Fuse: 140Auto Fuses included
★ 8 circuits: 2 rated at 5A max each, 2 rated at 10A max each, 2 rated at
20A max each, 2 rated at 30A max each
★ Warranty: 2 Year
How to connect the red, yellow and white cables?
1\. Connect the red cable to the ACC. If you want to light up the LED lamps
before the car start-up, please connect the recommended because the higher the
power is, the more the power of the battery will be consumed.
2\. The yellow cable connects the width lamp to the master switch panel.
3\. Connect the white cable to a momentary push button to adjust through
three different brightness levels of the switch panel. if you just want to
have the most brightness switch panel, you can disconnect it.
PACKAGE INCLUDE:
8 gang Switch panel,switch stickers,wiring harness, mounting accessories,
installation instruction and all required mounting hardware
Here is the video showing how to install and use the switch:
