Feature
Self-priming up to 9 feet suction lift
Internal Bypass - Low Cycling
Quiet Operation / Runs Dry - Thermally Protected
Built-In Check Valve
Revolution Pump Reference OEM number: 03526-144B,03526-144
SnapÐin Port Fittings - ?Ó Fittings included
CAN NOT be used with accumulator tank
Pumps are Tested Prior to Shipment for Quality Control
Product Specifics
Manufacturer Part Number: HK1098YU438CP
Warranty: 1 Year
UPC: Does not apply
Modified Item: No
Voltage Rating: 12 VDC
Other Part Number: 03526-144B,03526-144
Flow Rate GPM/LPM: 2.9 GPM
Amps (Max.): 7.5
Shut-Off Pressure: 50 PSI
Pressure Rating (PSI): 45 Pound Per Square Inch
Type: Internal By-Pass
Port Type: Snap
Material: EPDM Valve, Santoprene Diaphragm, Polypropylene Housing
Thermal Overload Protection: Yes
Color: Black
Flow Rate: 2.9 Gallon Per Minute
Note
100% Brand New
Installation Instruction is Included
Professional Installation is Highly Recommended

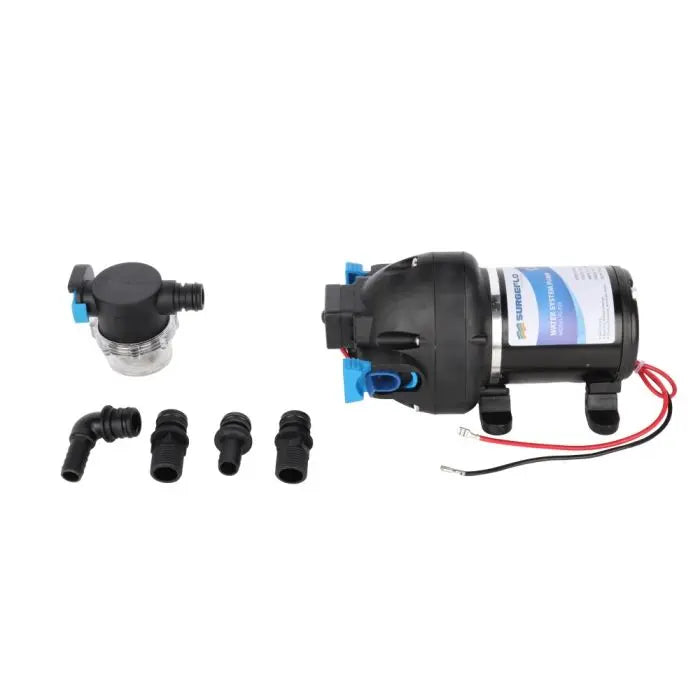

Includes
1X Revolution Water Pump with Strainer
Hardware If any as shown in the Picture Above
