Overhaul Engine Rebuild Kit Fit 1995 Dodge Plymouth Eagle Mitsubishi 2.0L
420A. Designed using state-of-the-art technology and with customers in mind.
This product is made of high-quality materials to serve you for years to come.
It will meet your needs and deliver great quality at an affordable cost.
Replace Part : 4797613, M04741372, M04797613
Overhaul Engine Rebuild Kit Fit 1995 Dodge Plymouth Eagle Mitsubishi 2.0L
420A. Designed using state-of-the-art technology and with customers in mind.
This product is made of high-quality materials to serve you for years to come.
It will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
1995 CHRYSLER SEBRING 2.0L 1996CC 122CID L4 DOHC, (16 VALVE), VIN CODE
"Y"
1995 DODGE AVENGER 2.0L 1996CC 122CID L4 DOHC, (16 VALVE), VIN CODE "Y"
1995 DODGE NEON 2.0L 1996CC 122CID L4 DOHC, (16 VALVE), VIN CODE "Y"
1995 DODGE NEON 2.0L 1997CC 122CID L4 DOHC, (16 VALVE), VIN CODE "Y"
1995 EAGLE TALON 2.0L 1997CC 122CID L4 DOHC, (16 VALVE), VIN CODE "Y"
1995 MITSUBISHI ECLIPSE 2.0L 1997CC 122CID L4 DOHC, (16 VALVE), ENG CODE
"420A"
1995 PLYMOUTH NEON 2.0L 1996CC 122CID L4 DOHC, (16 VALVE), VIN CODE "Y"

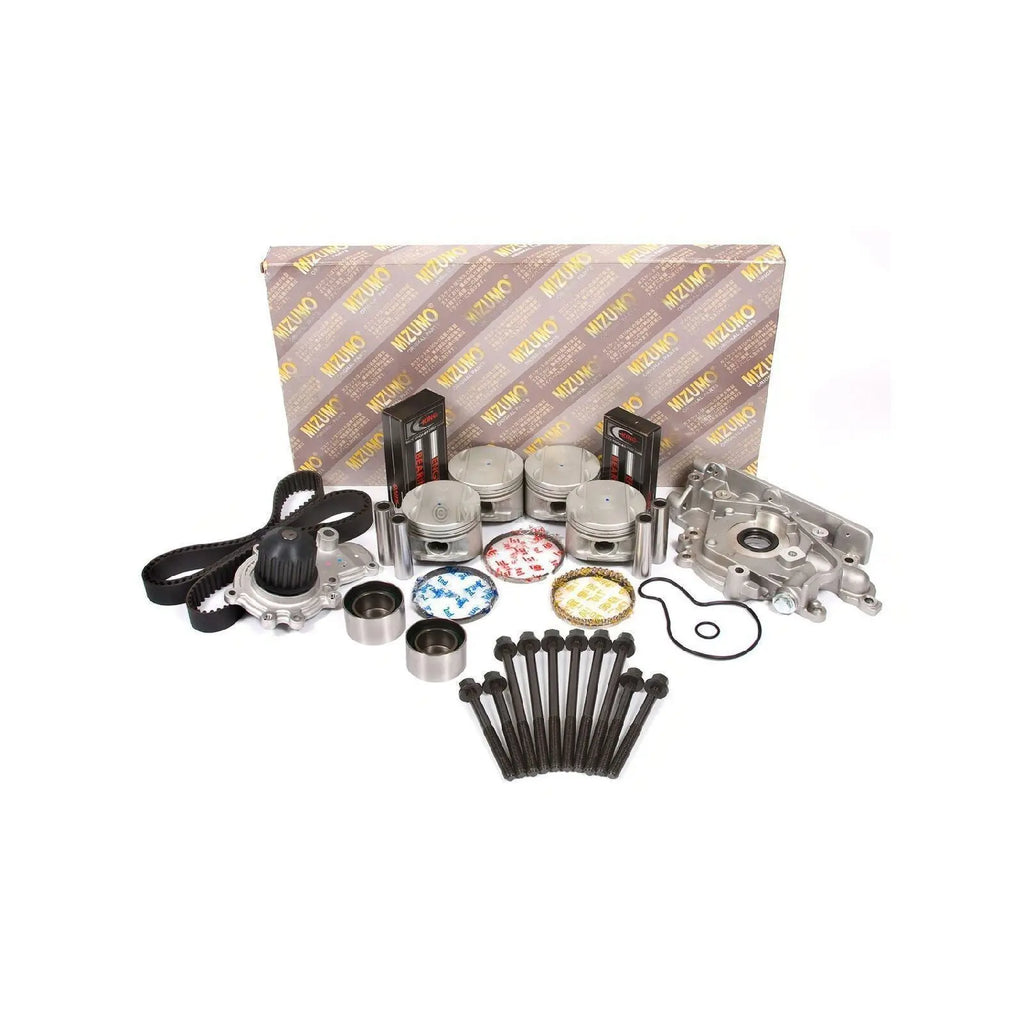

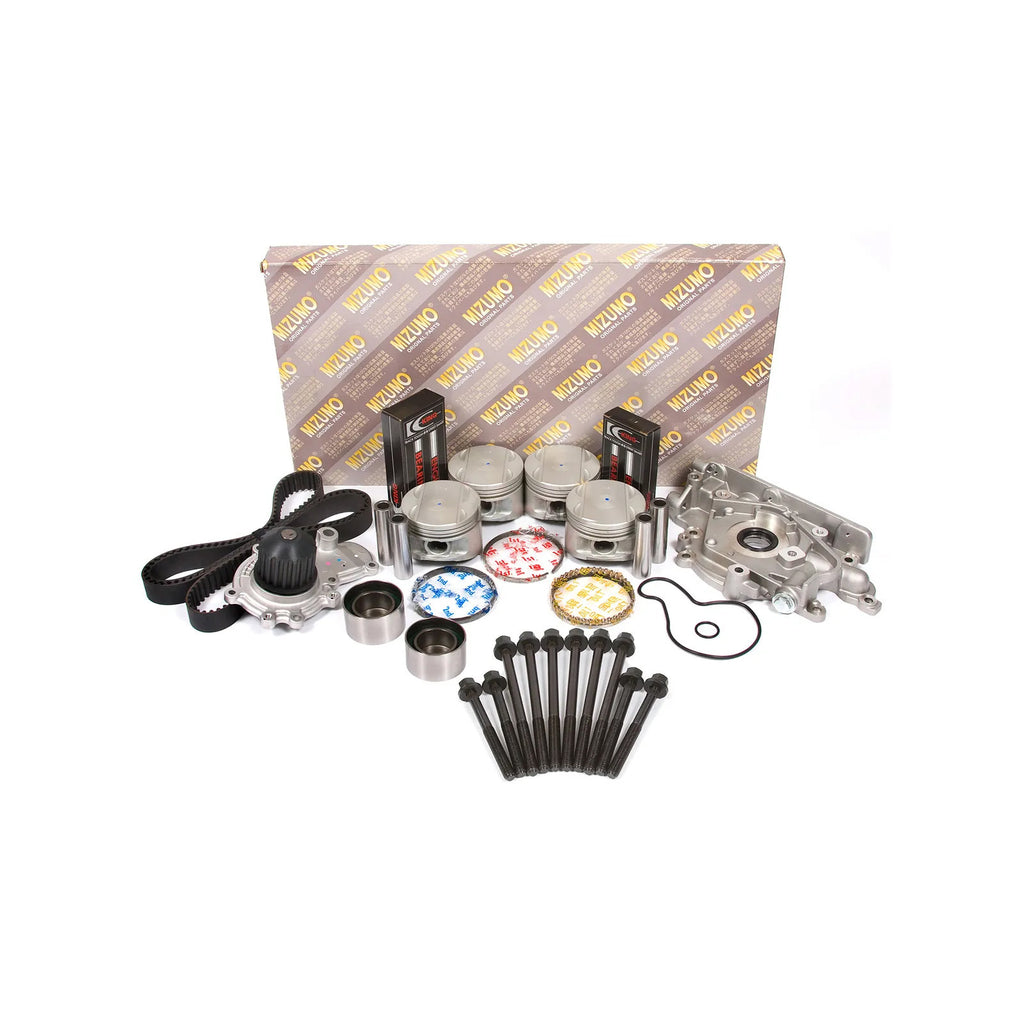

This item includes:
Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
10 Cylinder Head Bolts
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 87.50mm
1st Group: 1.20mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
4 Piston Wrist Pins
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
1 Timing Belt (150 teeth)
1 GMB Roller Tensioner Bearing
1 GMB Idler Bearing
Hydraulic Tensioner - is not included
Water Pump w/ Gasket
Oil Pump
Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.
Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS5020](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS5020&LH_TitleDesc=1&submit=)| MM| 87.500| 87.750| 88.000|
88.250| 88.500
IN| 3.445| 3.455| 3.465| 3.474| 3.484
Piston Ring Part| Piston Information
[RS5020](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS5020&LH_TitleDesc=1&submit=)
Specifications| MM| IN
Cylinder| 4
Bore| 87.500| 3.445
Comp| 31.400| 1.236
| Dist.| 1| +
---|---|---
2|
3|
| 0.900
---
| 0.035
---
Length| 64.800| 2.551
| Surface Treatment| Cir Clip|
| NONE
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
13.000| 0.512
Pin Length| 75.000| 2.953
Pin Diameter| 21.000| 0.827
1st| 1.200| 0.047
2nd| 1.200| 0.047
Oil Ring| 3.000| 0.118
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
