Timing Chain Kit Fits Honda Accord CR-V Acura ILX TSX 2.4 DOHC K24W1 K24W7
K24W9. Utilizes the latest in design and material technology, ensuring quiet
and maintenance-free experience. Specialized designs yield significant and
noticeable improvements to your car engine. Replace OE Part : 14401-5A2-A02,
14310-5A2-A01, 14210-5A2-A00, 14540-5LA-A01, 14530-5LA-A01, 14520-5LA-A01,
14550-5A2-A00, 14510-5A2-A02, 14560-5A2-A00, 13620-5A2-A01, 13441-5A2-A02,
13432-5A2-A00, 13450-5A2-A01
Timing Chain Kit Fits Honda Accord CR-V Acura ILX TSX 2.4 DOHC K24W1 K24W7
K24W9. The timing chain is located in the front of the motor and is attached
to a set of gears and pulleys that power multiple mechanical components,
including the crankshaft and camshaft. In order for your engine to fire, the
timing chain must smoothly rotate around the gears without hesitation.
Although the timing chain is made out of metal, it is subject to wear and tear
and may break if not replaced as recommended by the factory. Since the timing
chain can go bad and will need to be replaced, it is important to be able to
recognize the symptoms so you can have it repaired before it fails completely.
Signs your timing chain needs to be replaced include: Your vehicle has a rough
idle, meaning your engine shakes. Your car backfires. The vehicle seems to be
working harder than normal. Your car will not start at all, indicated a
complete timing chain failure. Be sure to use our aftermarket replacement
timing chain kit when your timing chain is serviced for the best performance.
Fits Following Models:
2013-2017 HONDA ACCORD 2.4L 2351CC L4 GAS DOHC, (16 VALVE), ENG CODE
"K24W1"
2015-2019 HONDA CR-V 2.4L 2351CC L4 GAS DOHC, (16 VALVE), ENG CODE
"K24W9"
2016-2019 ACURA ILX 2.4L 2351CC L4 GAS DOHC, (16 VALVE), ENG CODE "K24V7"
2015-2019 ACURA TLX 2.4L 2351CC L4 GAS DOHC, (16 VALVE), ENG CODE "K24W7"

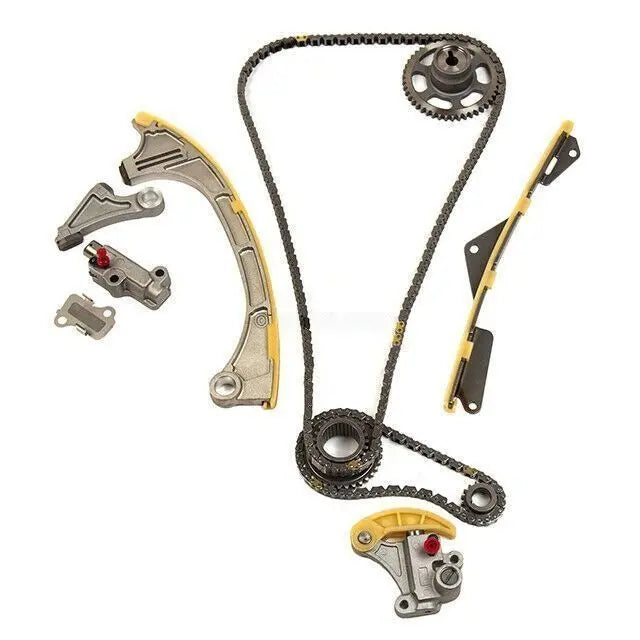

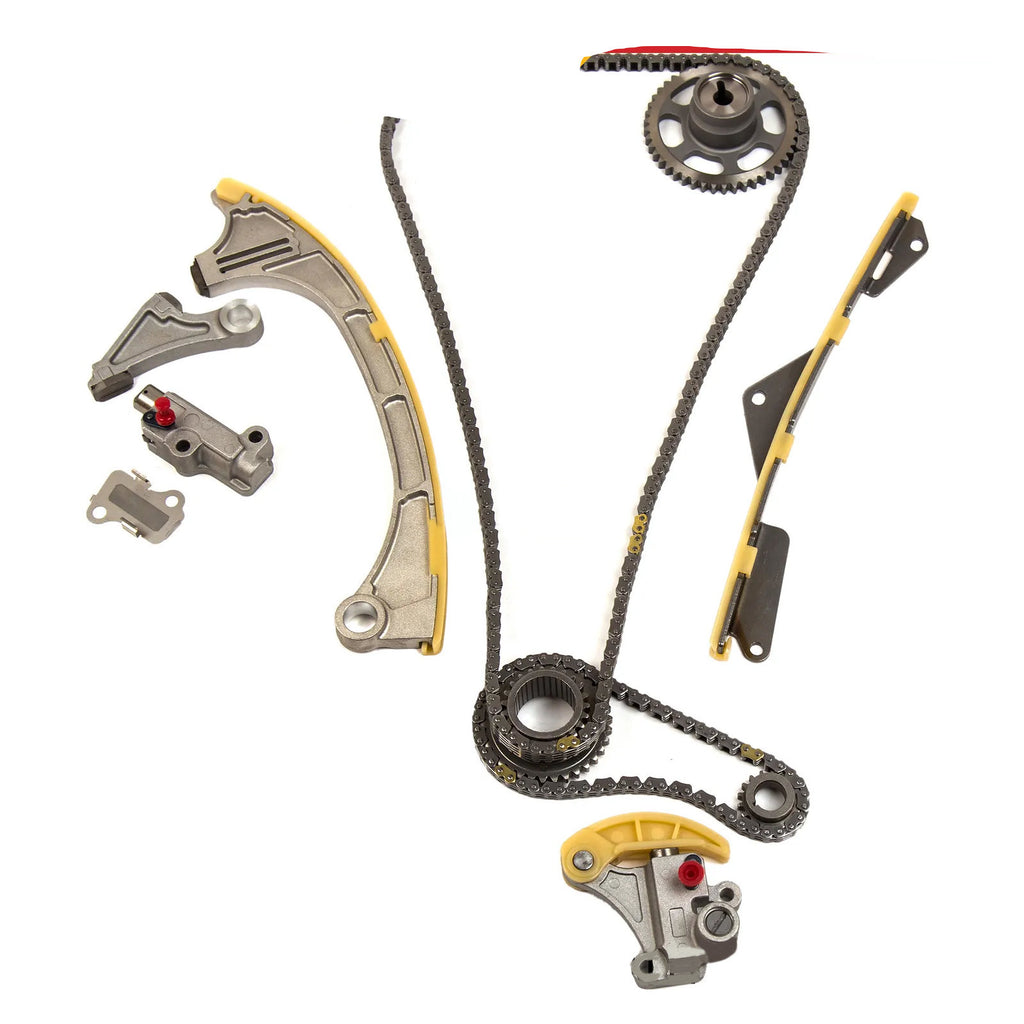

This item includes:
1 Timing Chain (180 Link - Primary Chain)
1 VVT Intake Cam Sprocket (46 teeth, VVT Actuator) - is not included
1 Exhaust Cam Sprocket (46 teeth)
1 Timing Guide (upper - between cams)
1 Timing Guide (fixed position)
1 Timing Chain Guide (curved tensioner rail)
1 Tensioner Guide (Arm, Cam Chain Tensioner)
1 Tensioner (for chain)
1 Timing Chain Tensioner Filter
1 Crank Shaft Gear (dual rows - 23 teeth / 34 teeth)
1 Oil Chain (64 Link)
1 Oil Chain Tensioner
1 Oil Pump Gear (17 teeth)
